What are deutsch connectors

Date: 2024.11.25   Views: 63


DEUTSCH Series products providing wires, connectors, terminals, accessories and submarine power cables for aerospace, marine, industrial and commercial transportation and rail.

Today, the DEUTSCH Series of products has expanded its product portfolio in several areas, and DEUTSCH connectors are also leading in racing and motorcycle racing applications.


DEUTSCH DT housings are available in 2, 3, 4, 6, 8 and 12 position options and accept size 16 DEUTSCH contacts with a continuous current of 13A per contact. Housings feature an integrated lock for mating.


DEUTSCH DTM connectors support direct plug-in installation and flange mounting, and can also be used for PCB mounting applications. The connector housing is made of reinforced thermoplastic, and the silicone seal and surface sealing material enable the connector to withstand extreme temperature and humidity environments.


DEUTSCH DTP connectors are engineered for higher power applications. Made from rugged thermoplastic, these connectors feature a silicone rear wire seal to provide a reliable connection in harsh environments. DEUTSCH DTP connectors allow designers to use multiple size 12 DEUTSCH contacts in one shell, each capable of carrying 25 amps of continuous current.

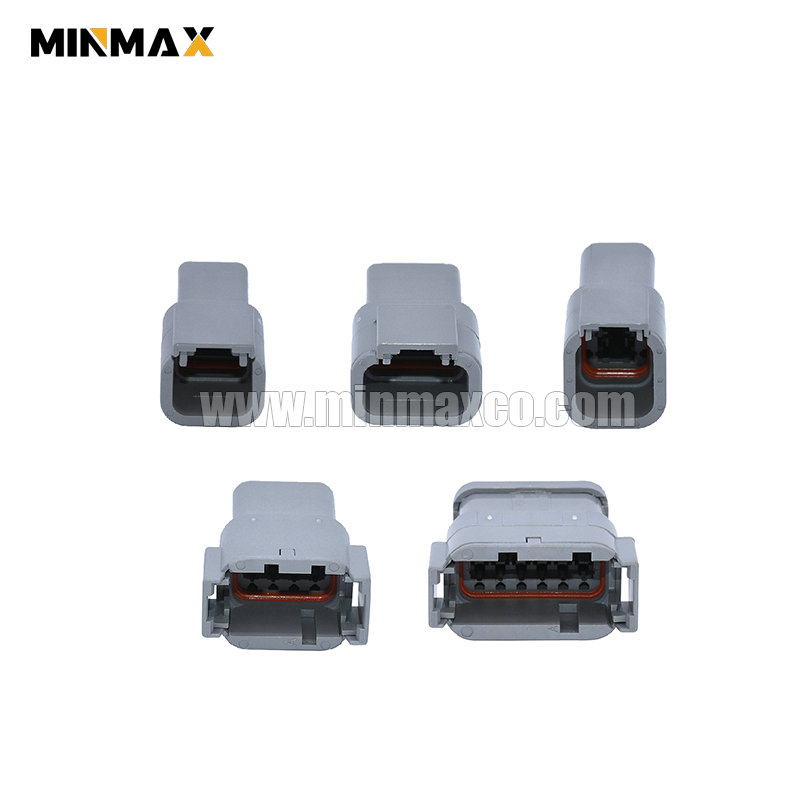

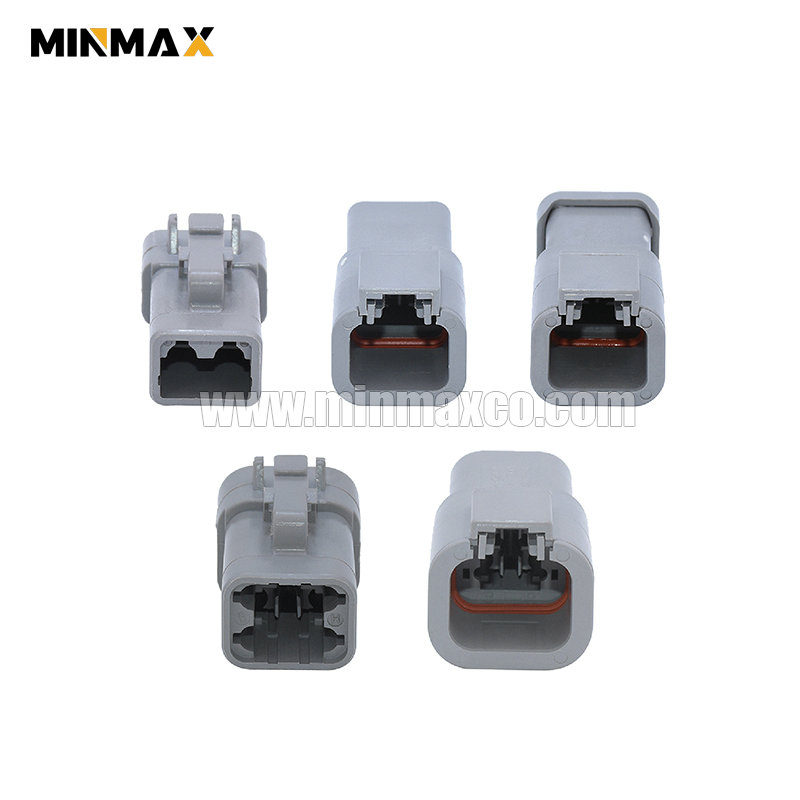

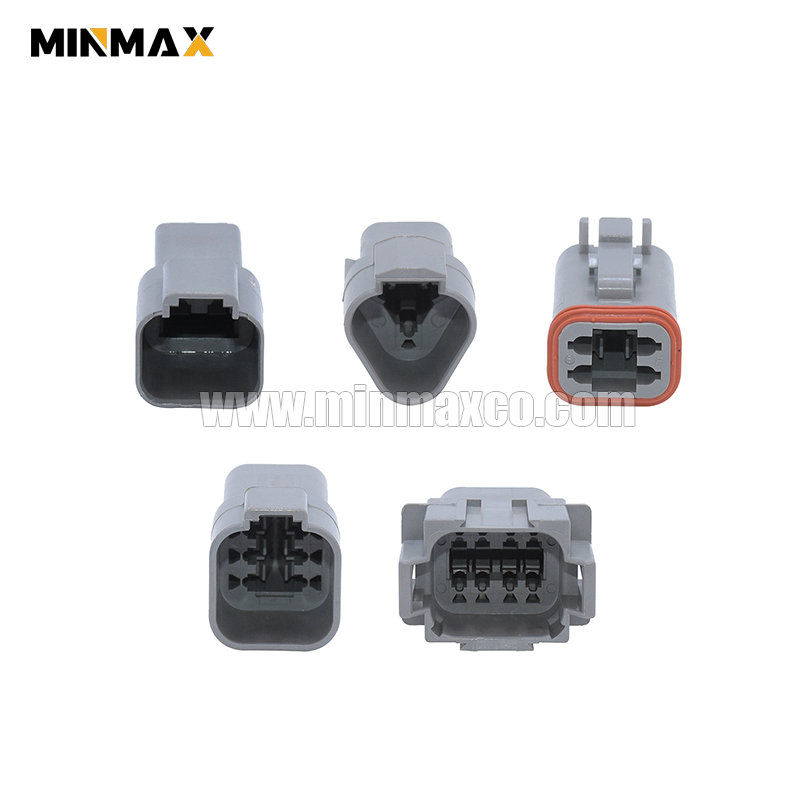

DT DTM DTP
DT06-2S DTM06-2S
DTP06-2S

DT04-2P

DTM04-2P
DTP04-2P

DT06-3S

DTM06-3S

DTP06-4S

DT04-3P

DTM04-3P
DTP04-4P

DT06-4S

DTM06-4S

DT04-4P

DTM04-4P

DT06-6S

DTM06-6S

DT04-6P

DTM04-6P

DT06-08SA

DTM06-08SA

DT04-08PA

DTM04-08PA

DT06-12SA

DTM06-12S

DT04-12PA

DTM04-12PA
