HomeProductsTerminalFemale040 MULTILOCK 12124256 Female Tin Terminal

Female

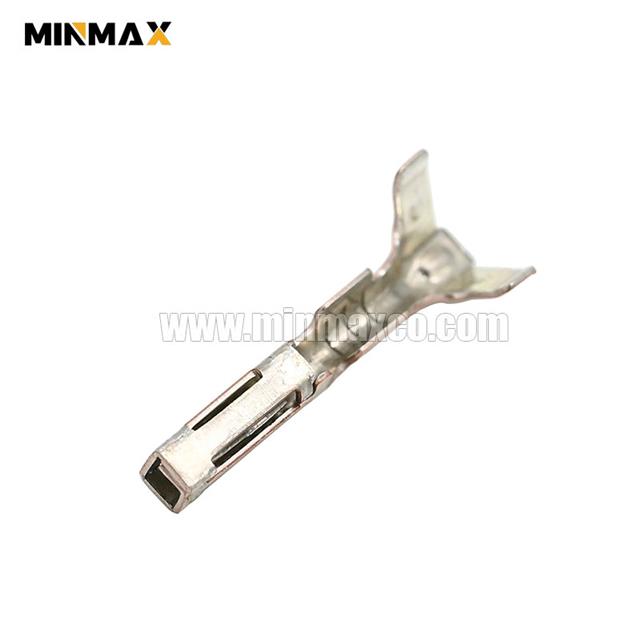

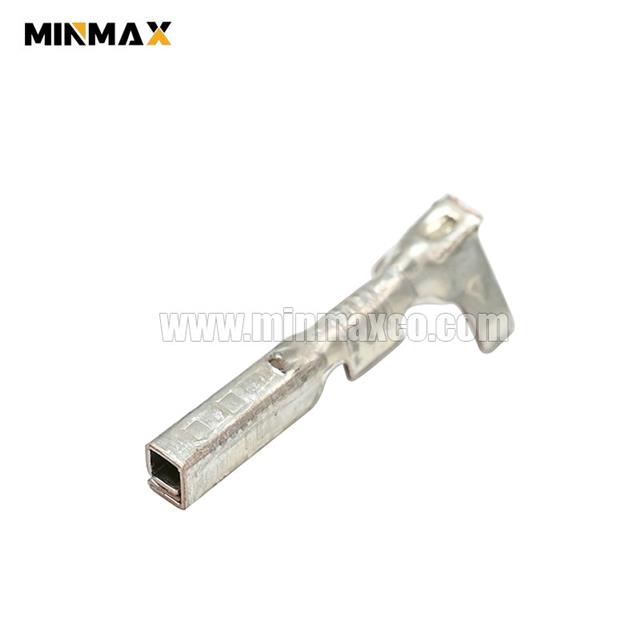

040 MULTILOCK 12124256 Female Tin Terminal

040 MULTILOCK 12124256 Female Tin Terminal

OEM Part Number12124256
OEM Series
MinMax Part Number1210000218
MinMax Family
Tab Size (mm)1.2mm
Male/FemaleFemale
SealableNo
Wire Size (mm²)0.2-0.5mm2
Wire Size (AWG)24-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
