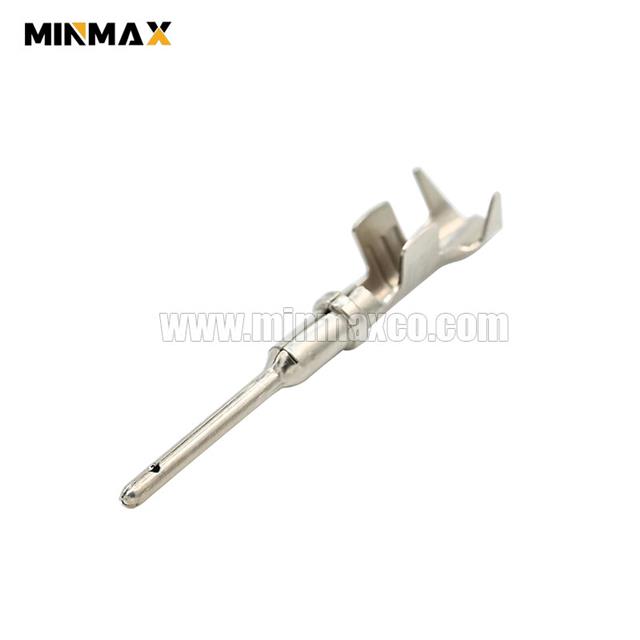

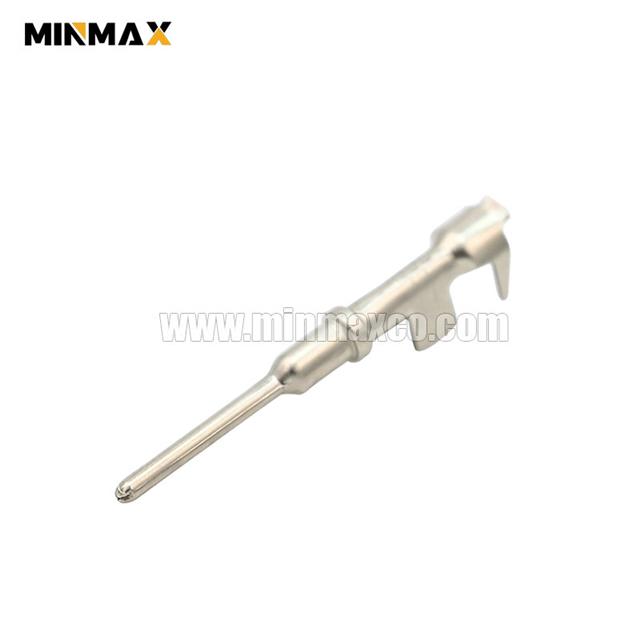

1060-20-0122 Male Nickel Stamped Formed Pin Terminal

1060-20-0122 Male Nickel Stamped Formed Pin Terminal

OEM Part Number1060-20-0122
OEM Series
MinMax Part Number1250000002
MinMax Family
Tab Size (mm)1.2mm
Male/FemaleMale
SealableNo
Wire Size (mm²)
Wire Size (AWG)22AWG, 20AWG, 18AWG, 16AWG
Crimp Type
MaterialBrass
Interface PlatingNickel
Load Current22(AWG)--2.5(A), 20(AWG)--4(A), 18(AWG)--6(A), 16(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
