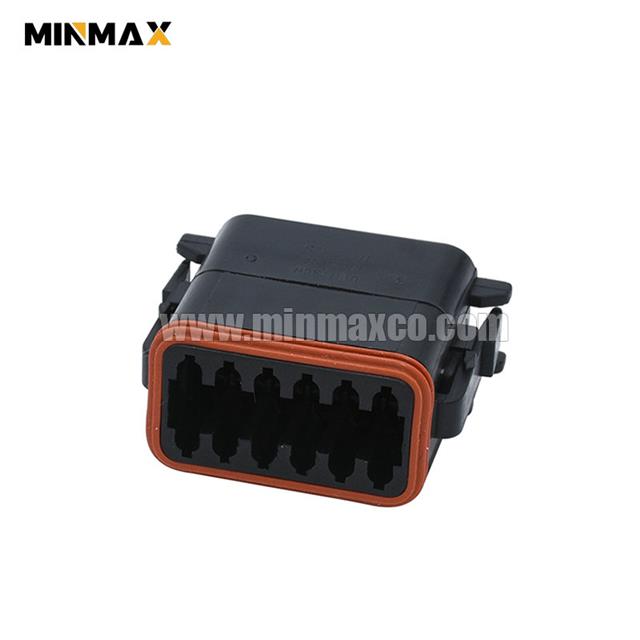

12 Way Female DT Mining Vehicle Sealed Plug DT06-12SA-E004

12 Way Female DT Mining Vehicle Sealed Plug DT06-12SA-E004

OEM Part NumberDT06-12SA-E004
OEM SeriesDT
MinMax Part Number1150000370
MinMax FamilyMCS076
Connection TypeWire to Wire, Wire to Board
Number of Positions012
Number of Rows2
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Body ColorBlack
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

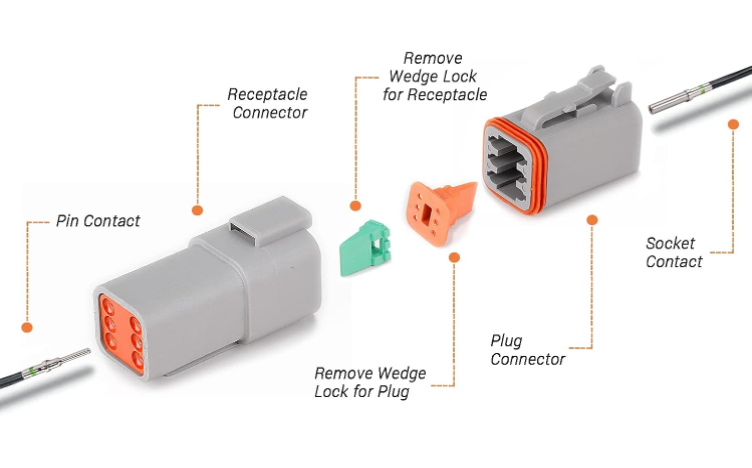

DT series provide reliable waterproof connections for cable-to-cable applications

across various environments, including engines, transmissions, chassis, under the hood, and within the cab.


Deutsch Features

✔In line, flange, or PCB mount

Multiple Pin Configurations:2.3,4.6,8 and 12 cavity

High Current Capacity: 13A per contact with 16-gauge wires

Easy Installation:reduced assembly time

Environmental Seal:will handle extreme applications

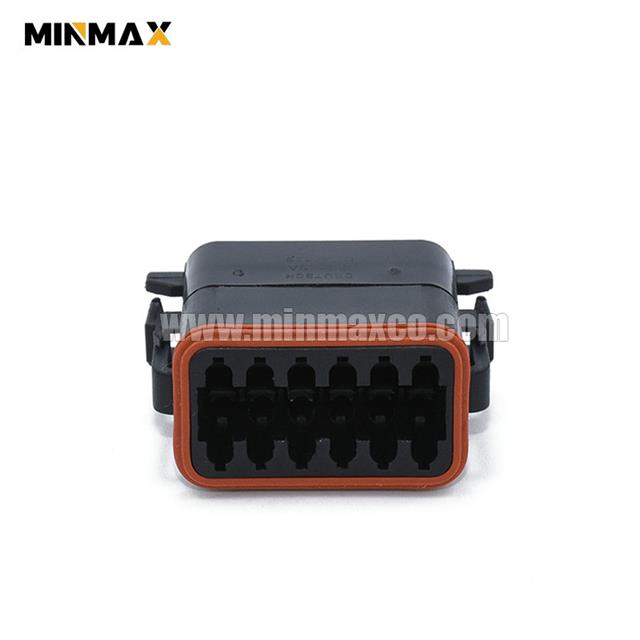

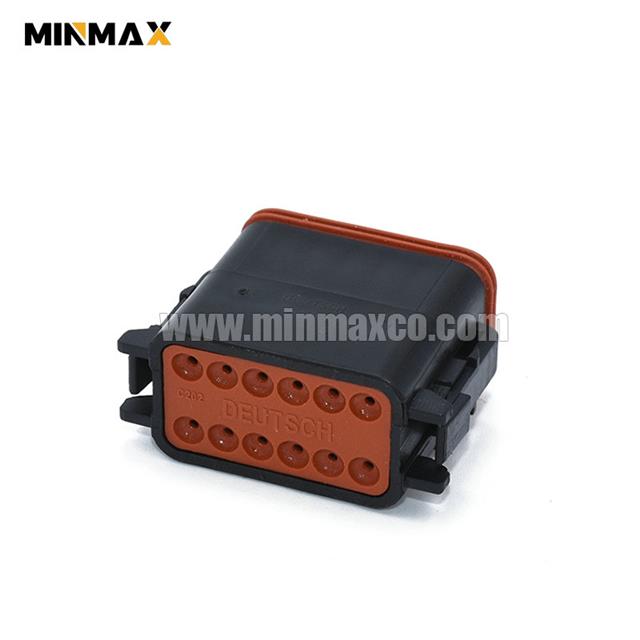

deutsch 12 pin plug


deutsch 12 pin plug
