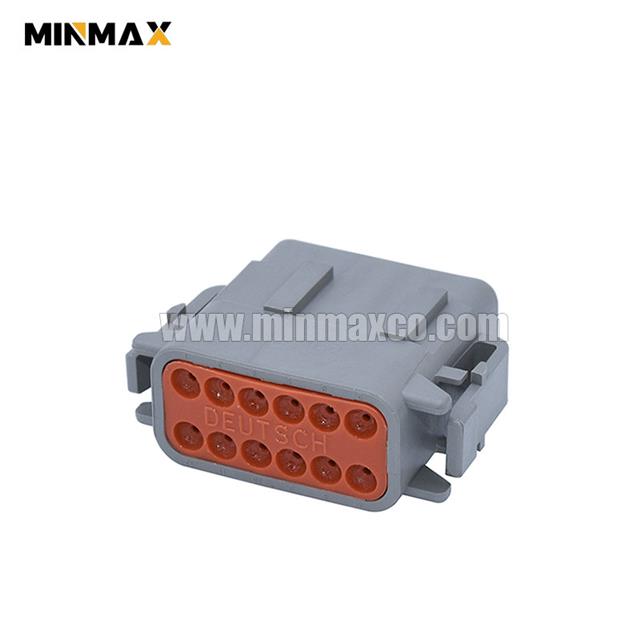

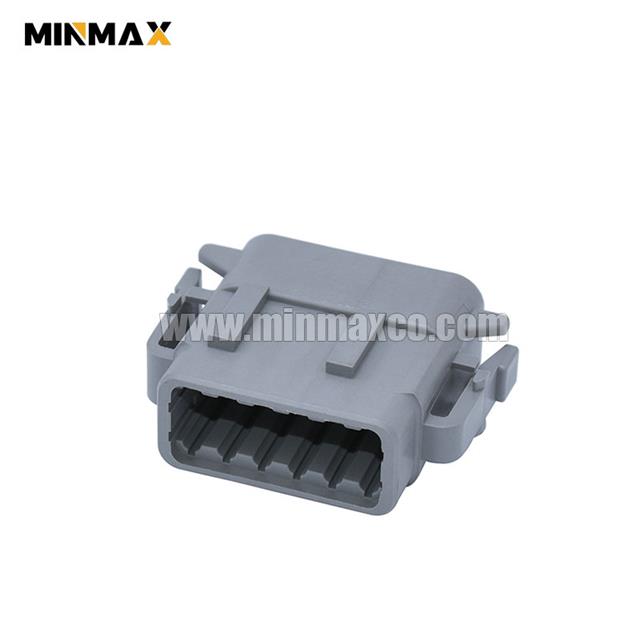

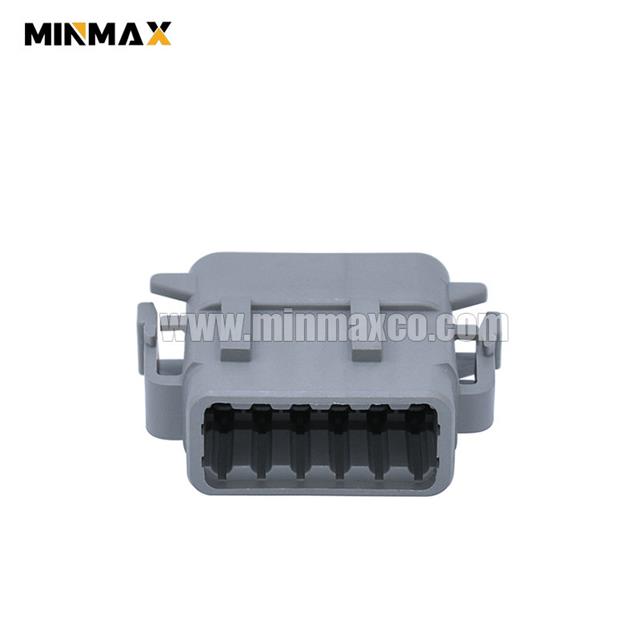

12 Way Female  DTM Plug DTM06-12S Gray

12 Way Female DTM Plug DTM06-12S Gray

OEM Part NumberDTM06-12S
OEM SeriesDTM
MinMax Part Number1150000393
MinMax FamilyMCS049
Connection TypeWire to Wire, Wire to Board
Number of Positions012
Number of Rows2
HybridNo
Contact Tab Size (mm)1.2mm
Male/FemaleFemale
SealableYes
Body ColorGray
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

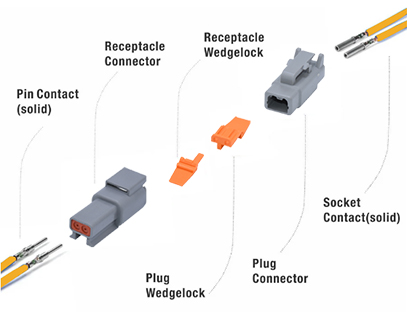

DTM series provide reliable waterproof connections for cable-to-cable applications

across various environments, including engines, transmissions, chassis, under the hood, and within the cab.




Deutsch DTM Connectors Features

✔In line, flange, or PCB mount

✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity

✔High Current Capacity: 7.5A per contact with 20-gauge wires

✔Easy Installation:reduced assembly time

✔Environmental Seal:will handle extreme applications

deutsch 12 pin plug
