HomeProductsTerminalMale12124582 Sealed Tin Plating Terminal Wire Size

Male

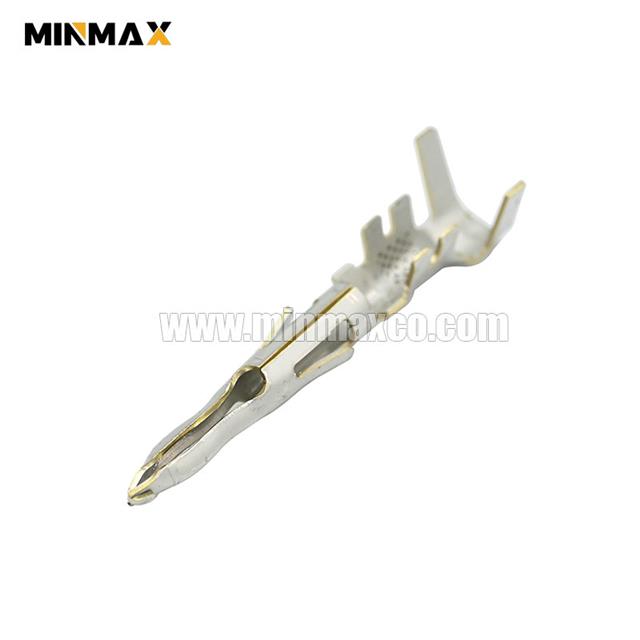

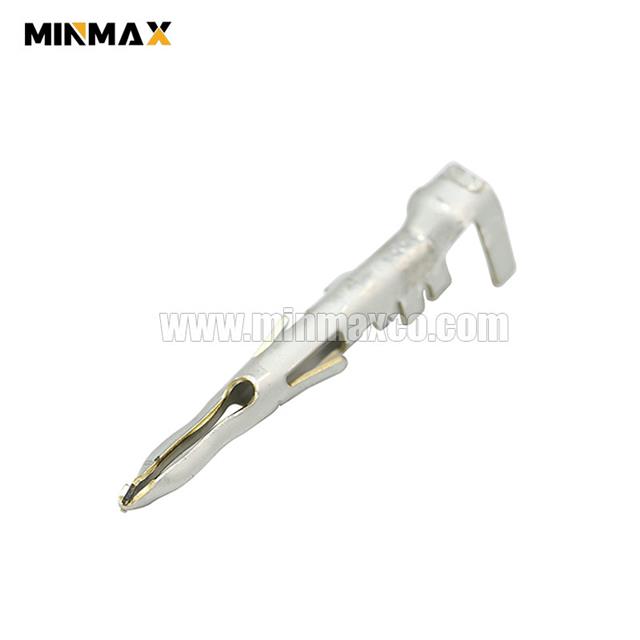

12124582 Sealed Tin Plating Terminal Wire Size

12124582 Sealed Tin Plating Terminal Wire Size

OEM Part Number12124582
OEM Series
MinMax Part Number1210000143
MinMax FamilyMTS017
Tab Size (mm)2.5mm
Male/FemaleMale
SealableYes
Wire Size (mm²)1.25-2.0mm2
Wire Size (AWG)16-14AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current16(AWG)--6(A), 14(AWG)--16(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
