Housing

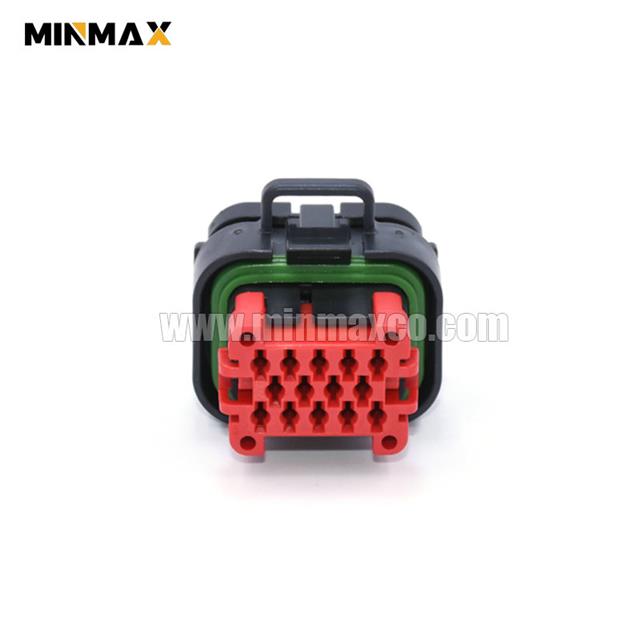

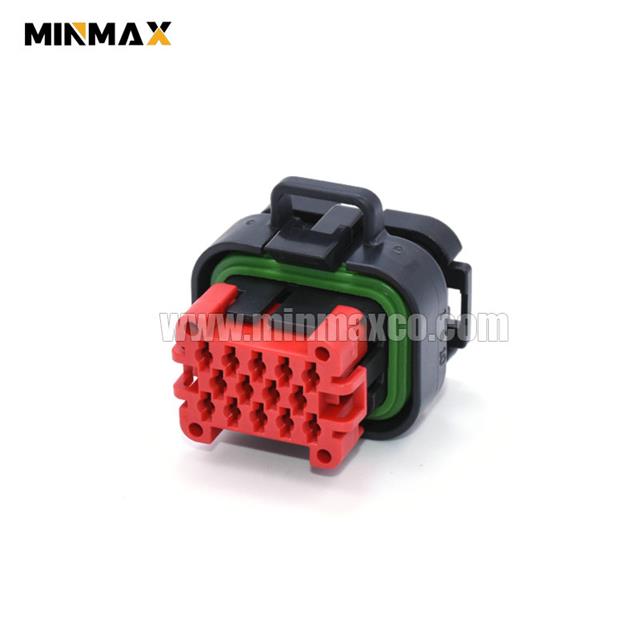

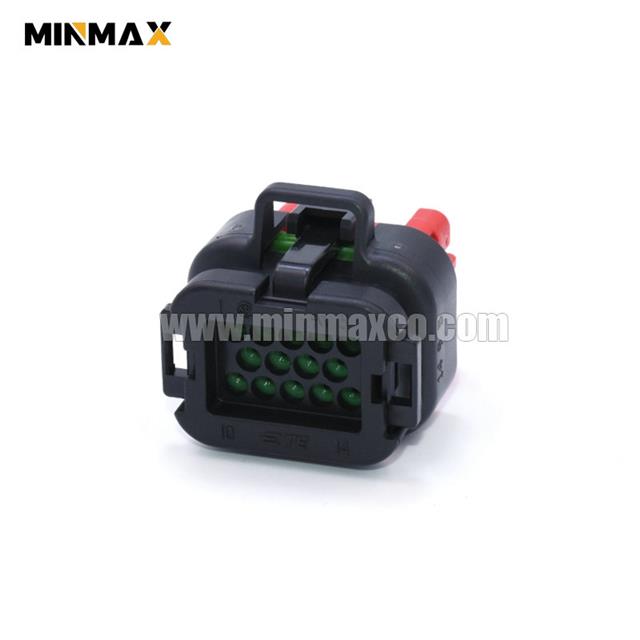

14 Way Female AMPSEAL 1.5 ECU Plug 776273-1

14 Way Female AMPSEAL 1.5 ECU Plug 776273-1

OEM Part Number776273-1
OEM SeriesAMPSEAL 1.5
MinMax Part Number1121003646
MinMax FamilyMCS020
Connection TypeWire to Board, Wire to Device
Number of Positions014
Number of Rows2
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Body ColorBlack
Housing Material
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
