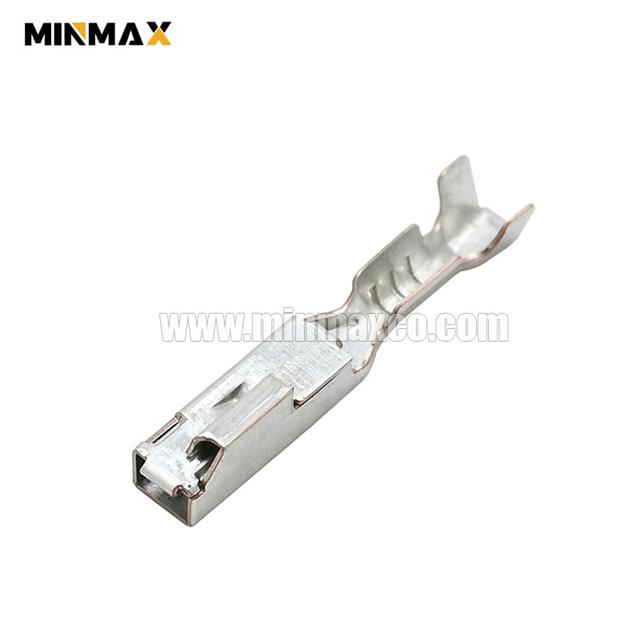

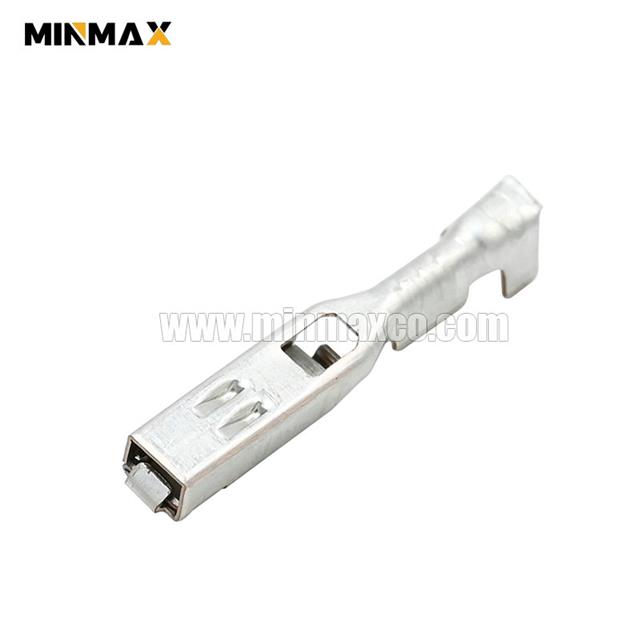

1400-0817 NS Female Tin Socket Terminal

1400-0817 NS Female Tin Socket Terminal

OEM Part Number1400-0817
OEM Series
MinMax Part Number1210000222
MinMax Family
Tab Size (mm)2.2mm
Male/FemaleFemale
SealableNo
Wire Size (mm²)0.30-0.50mm2
Wire Size (AWG)22-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
