HomeProductsTerminalMale171631-1 Econoseal J 070 Mk II Series Male Crimp Terminal

Male

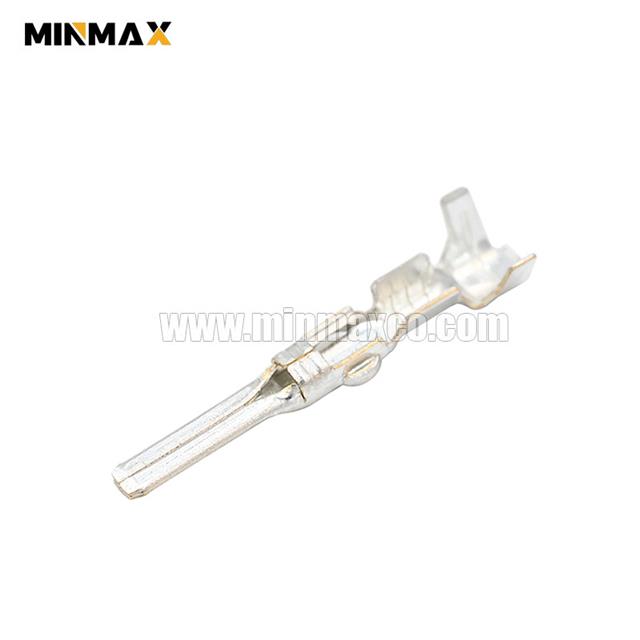

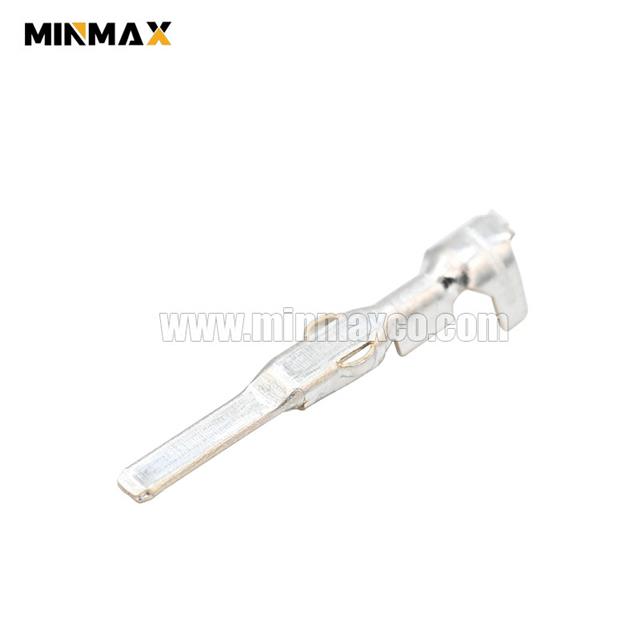

171631-1 Econoseal J 070 Mk II Series Male Crimp Terminal

171631-1 Econoseal J 070 Mk II Series Male Crimp Terminal

OEM Part Number171631-1
OEM SeriesEconoseal Connector Series
MinMax Part Number1210000018
MinMax FamilyMTS007
Tab Size (mm)1.8mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.3-0.5mm2
Wire Size (AWG)22-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
