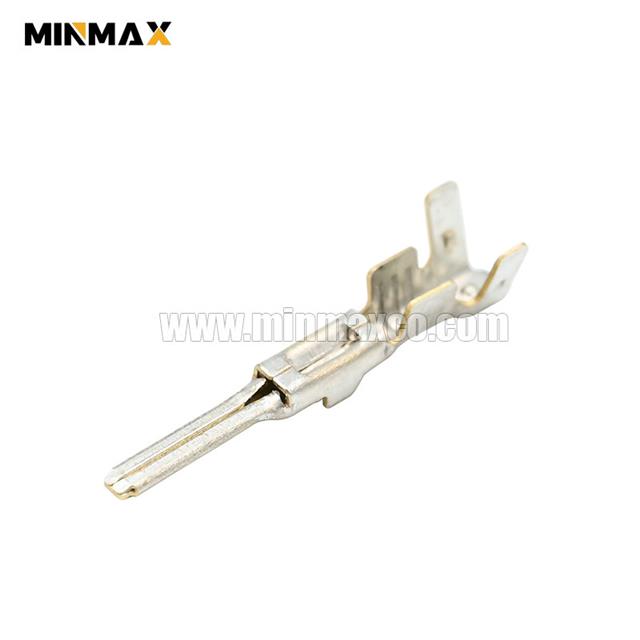

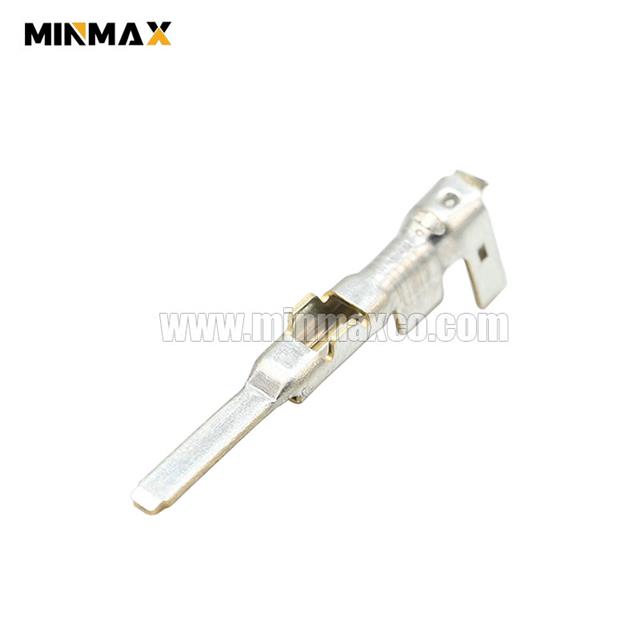

173645-1 7114-1282 Multilock Male Unsealed Tin Automotive Terminal

173645-1 7114-1282 Multilock Male Unsealed Tin Automotive Terminal

OEM Part Number7114-1282 / 173645-1 / MT091-54130 / 15327504 / 13627113
OEM Series
MinMax Part Number1210000482
MinMax Family
Tab Size (mm)1.8mm
Male/FemaleMale
SealableNo
Wire Size (mm²)0.85-1.25mm2
Wire Size (AWG)18-16AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current18(AWG)--6(A), 16(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
