HomeProductsConnectorHousing2 Pin Female Tower Weather Pack Sensor Connector 12010501

Housing

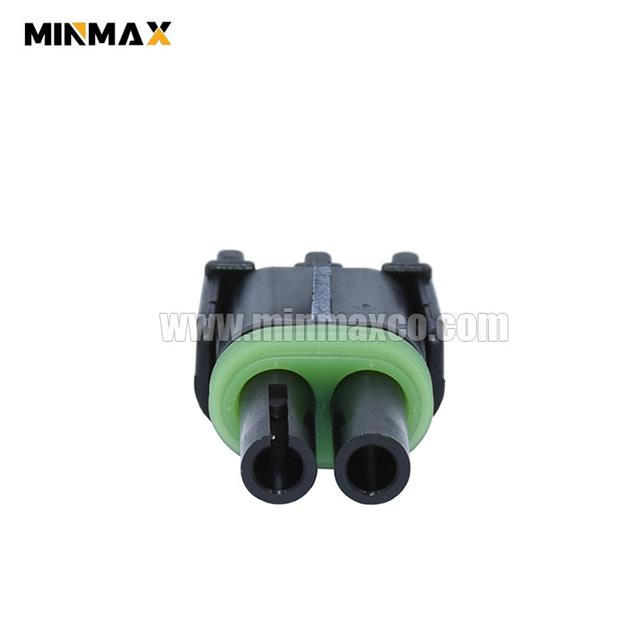

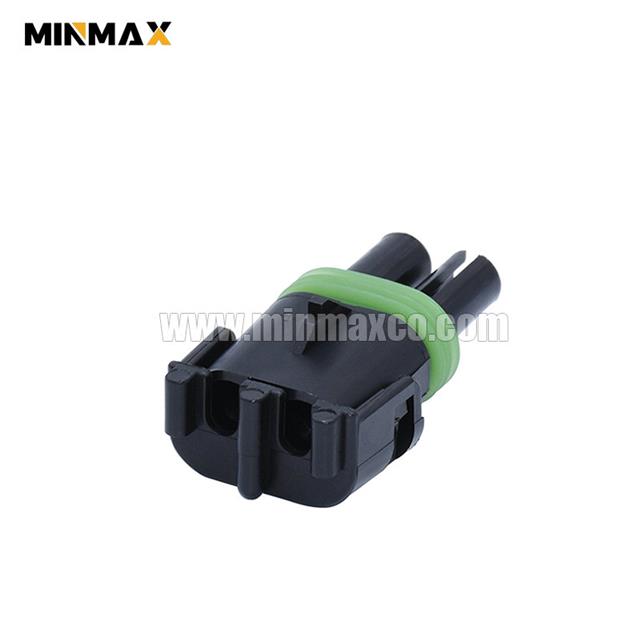

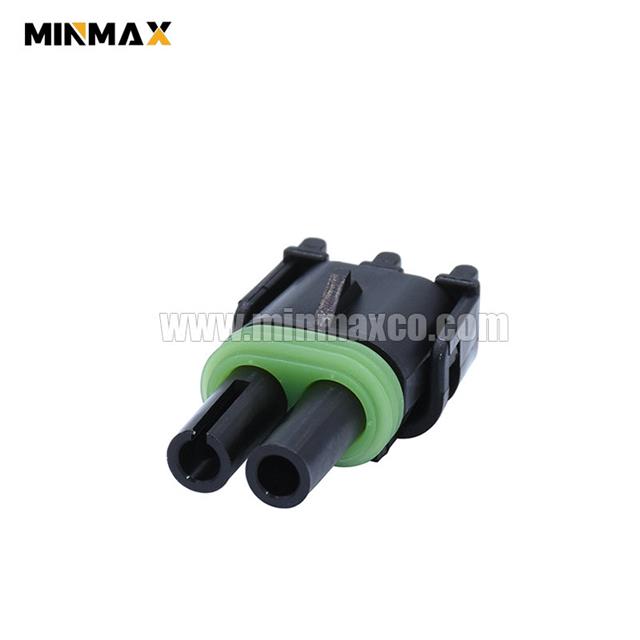

2 Pin Female Tower Weather Pack Sensor Connector 12010501

2 Pin Female Tower Weather Pack Sensor Connector 12010501

OEM Part Number12010501
OEM SeriesWeather-Pack Sealed
MinMax Part Number1121001648
MinMax FamilyMCS063
Connection TypeWire to Wire
Number of Positions002
Number of Rows1
HybridNo
Contact Tab Size (mm)2.5mm
Male/FemaleFemale
SealableYes
Body ColorBlack
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
