DT DTM DTP

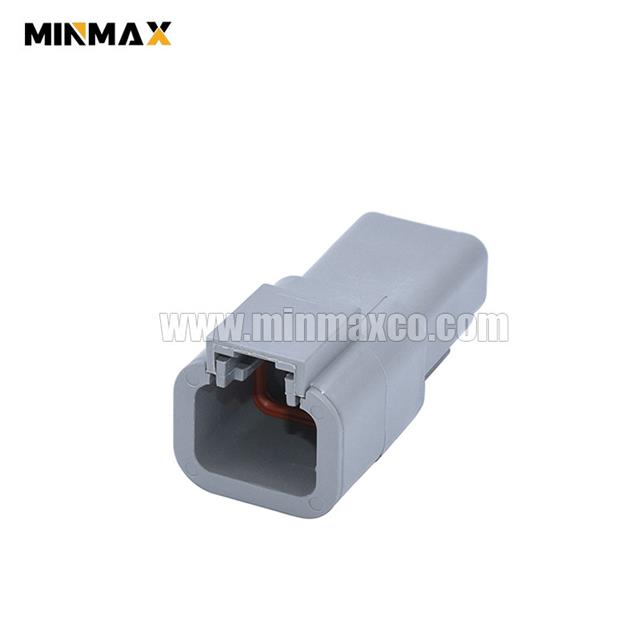

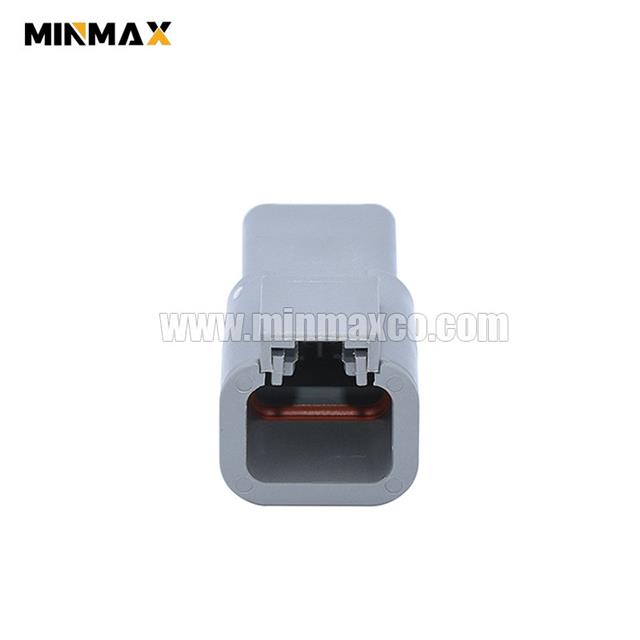

2 Pin Male  DTP Receptacle DTP04-2P Gray

2 Pin Male DTP Receptacle DTP04-2P Gray

OEM Part NumberDTP04-2P
OEM SeriesDTP
MinMax Part Number1150000064
MinMax FamilyMCS078
Connection TypeWire to Wire, Wire to Board
Number of Positions002
Number of Rows1
HybridNo
Contact Tab Size (mm)2.5mm
Male/FemaleMale
SealableYes
Body ColorGray
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

DTP series provide reliable waterproof connections for cable-to-cable applications

across various environments, including engines, transmissions, chassis, under the hood, and within the cab.

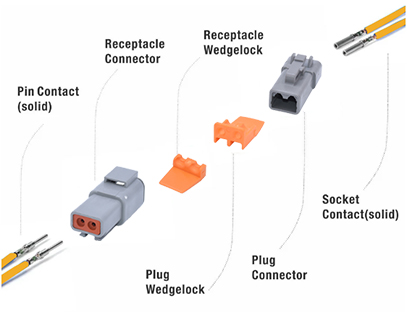

Deutsch DTP Connectors Features

✔In line, flange, or PCB mount

✔Multiple Pin Configurations:2 and 4 cavity

✔High Current Capacity: 25A per contact with 12-gauge wires

✔Easy Installation:reduced assembly time

✔Environmental Seal:will handle extreme applications


deutsch 2 pin plug
