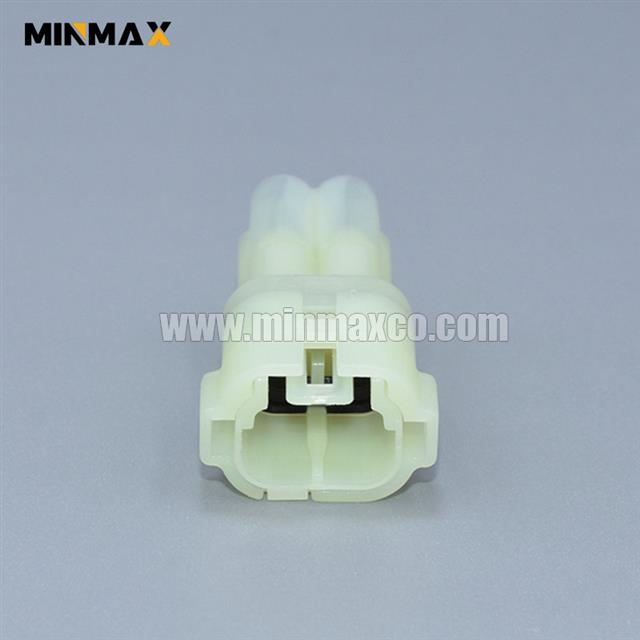

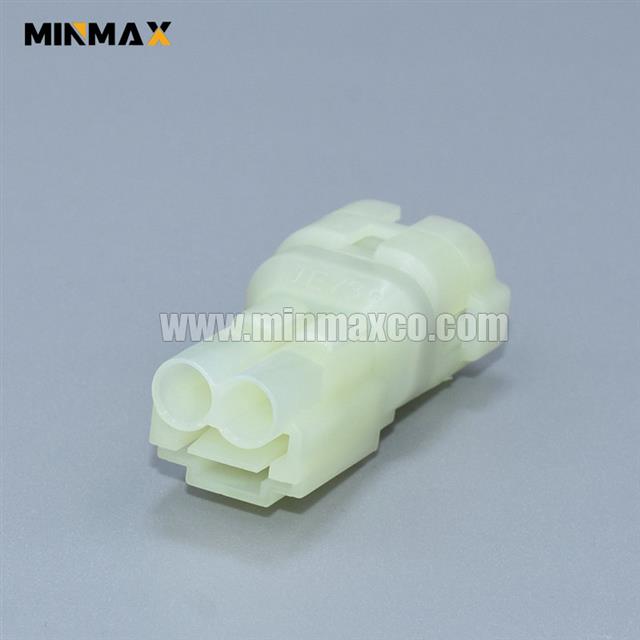

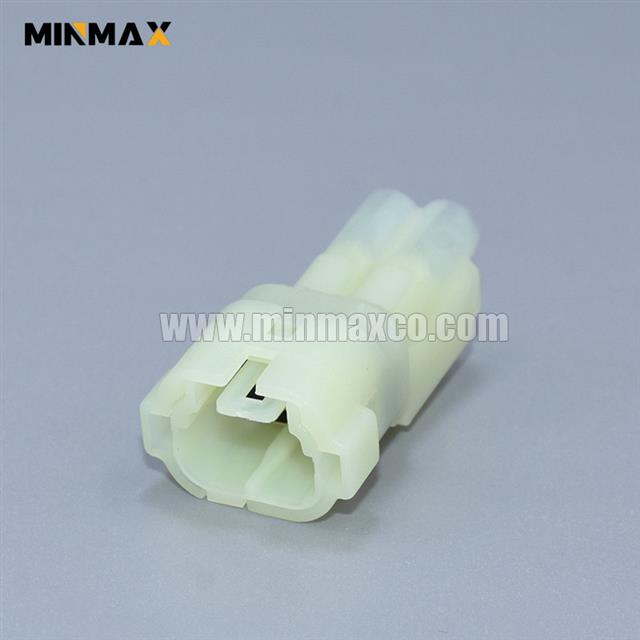

2 Pole Male HM Honda Motorsport Connector 6187-2801

2 Pole Male HM Honda Motorsport Connector 6187-2801

OEM Part Number6187-2801
OEM SeriesHM sealed series
MinMax Part Number1111000123
MinMax FamilyMCS004
Connection Type Wire to Wire
Number of Positions002
Number of Rows1
HybridNo
Contact Tab Size (mm)2.0mm
Male/FemaleMale
SealableYes
Body ColorNatural
Housing MaterialPA66[H]
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
