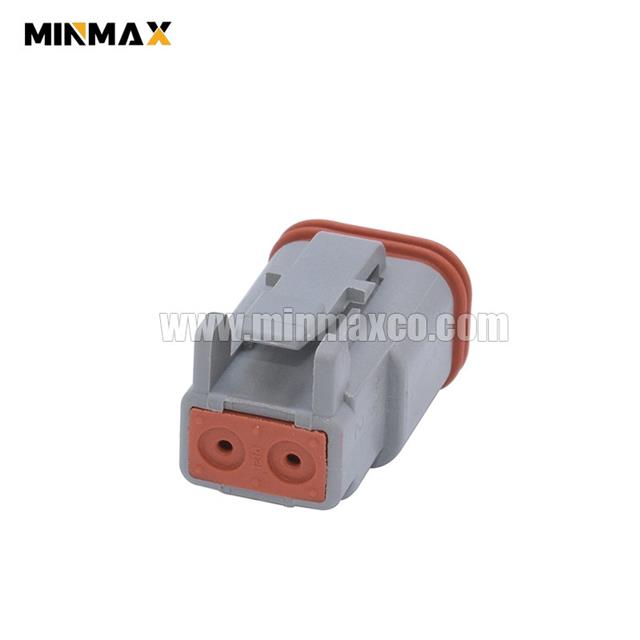

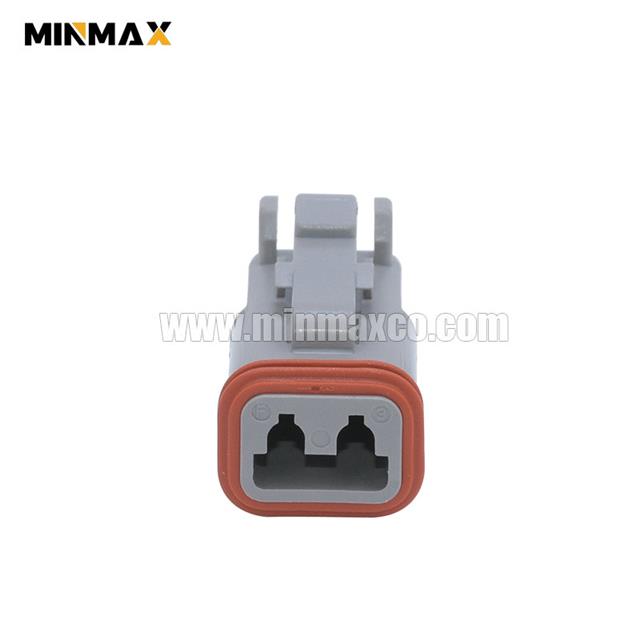

2 Way Female DT Plug DT06-2S Gray

2 Way Female DT Plug DT06-2S Gray

OEM Part NumberDT06-2S
OEM SeriesDT
MinMax Part Number1150000023
MinMax FamilyMCS076
Connection TypeWire to Wire, Wire to Board
Number of Positions002
Number of Rows1
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Body ColorGray
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

DT series provide reliable waterproof connections for cable-to-cable applications

across various environments, including engines, transmissions, chassis, under the hood, and within the cab.

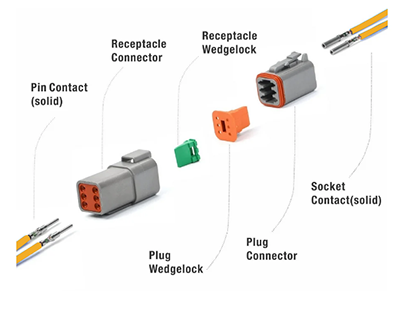

Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2,3,4,6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications
