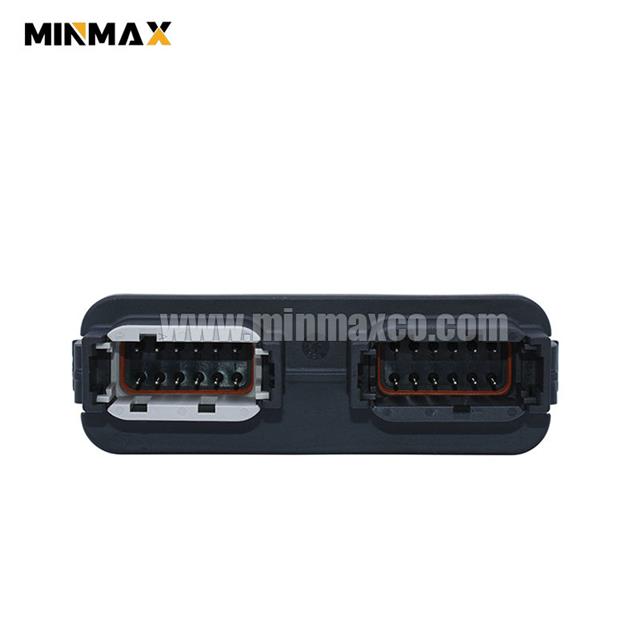

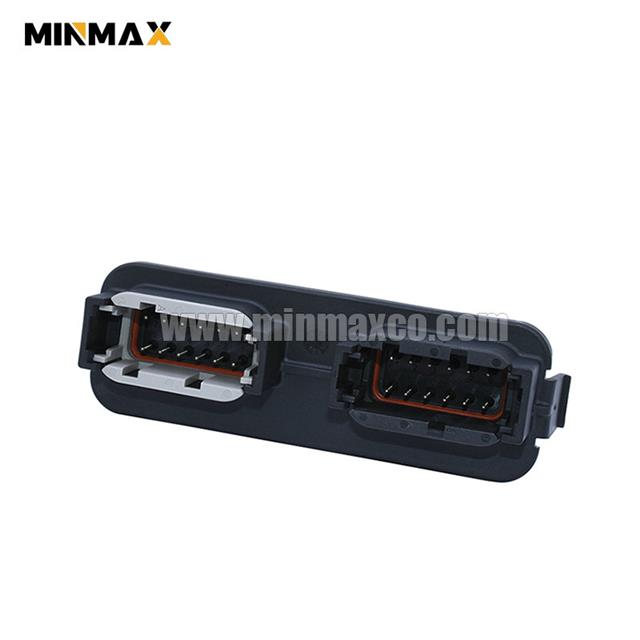

| OEM Part Number | DTM13-12PA-12PB-R008 |
|---|---|
| OEM Series | DTM |
| MinMax Part Number | 1150000401 |
| MinMax Family | MCS049 |
| Connection Type | Wire to Wire, Wire to Board |
| Number of Positions | 024 |
| Number of Rows | 2 |
| PCB Mount Orientation | |
| Hybrid | No |
| Contact Tab Size (mm) | 1.2mm |
| Male/Female | Male |
| Sealable | Yes |
| Body Color | Black |
| Housing Material | PBT-GF30-V0 |
| Contact Plating Material | Tin |
| Pitch | |
| Nominal Voltage Architecture (V) | 12，14 |
| Operating Temperature Range | -40℃~120℃ |
| Certification | ISO9001, RoHS, REACH, TS16949 |

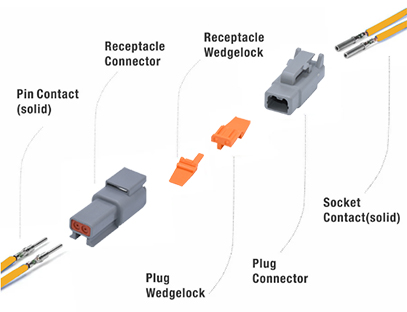

DTM series provide reliable waterproof connections for cable-to-cable applications
across various environments, including engines, transmissions, chassis, under the hood, and within the cab.
Deutsch DTM Connectors’ Features

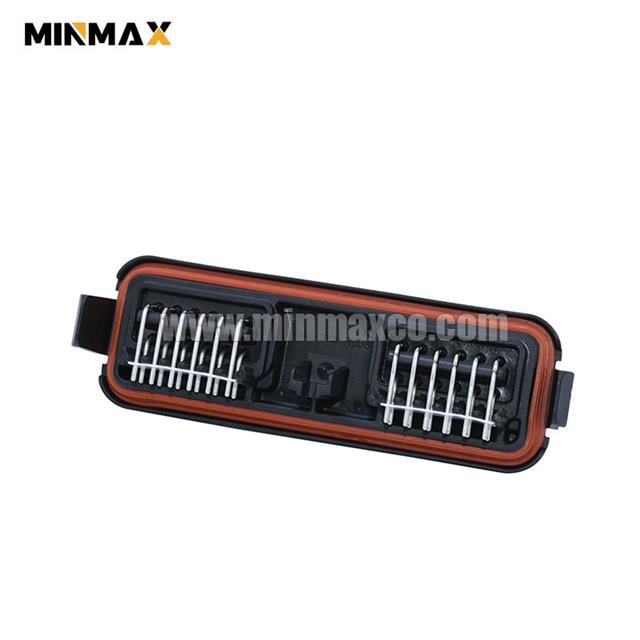

✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 7.5A per contact with 20-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications
