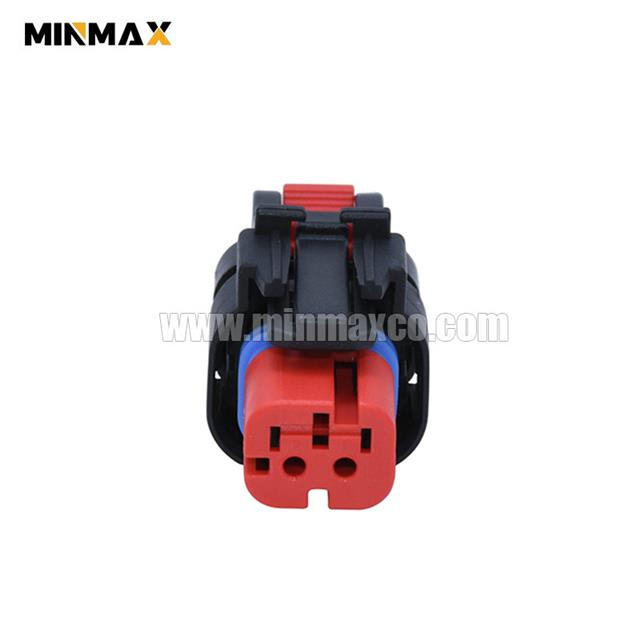

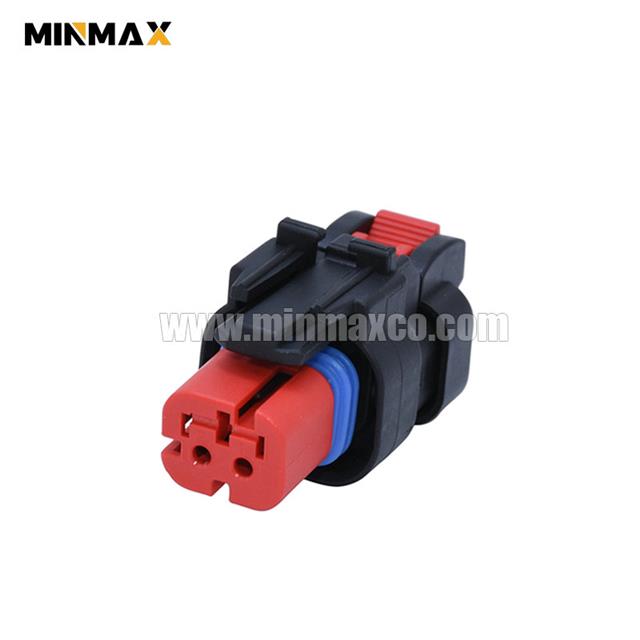

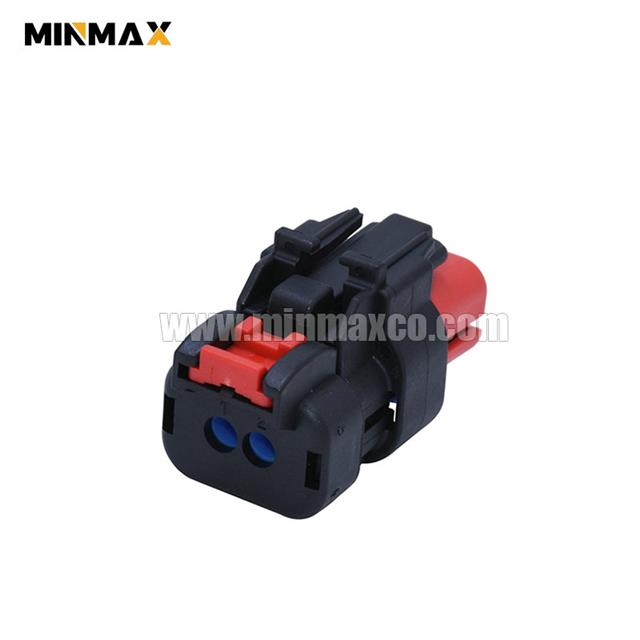

2P Female AMPSEAL 16 Automotive Connector 776427-1

2P Female AMPSEAL 16 Automotive Connector 776427-1

OEM Part Number776427-1
OEM SeriesAMPSEAL 16
MinMax Part Number1121000010
MinMax FamilyMCS019
Connection TypeWire to Wire
Number of Positions002
Number of Rows1
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Body ColorBlack
Housing Material PBT-GF20-V0
Nominal Voltage Architecture (V) 12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
Ampseal 16 Connector Series


Overview

AMPSEAL 16 receptacle style housings for pin contacts with integral primary latch reinforcement and CPA for secure locking have color coding and physical keying to prevent miss-mating.


Features

• Number of contacts: 2, 3, 4, 6, 8 and 12

• Cable exit angle: 180°

• Operating temperature range: -40°C to +125°C

• Pitch 4.5 mm

• Current: Up to 13 amps
