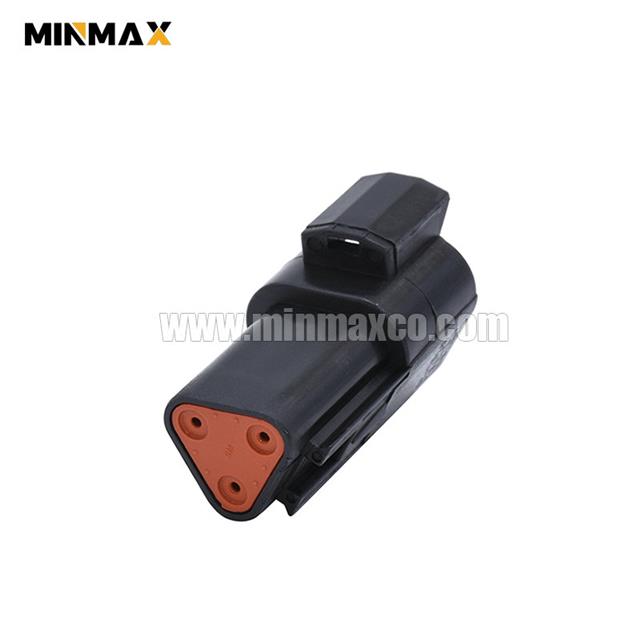

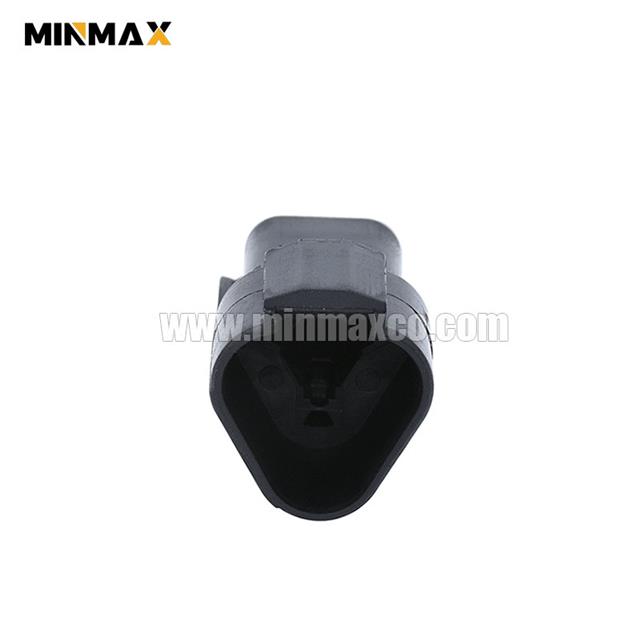

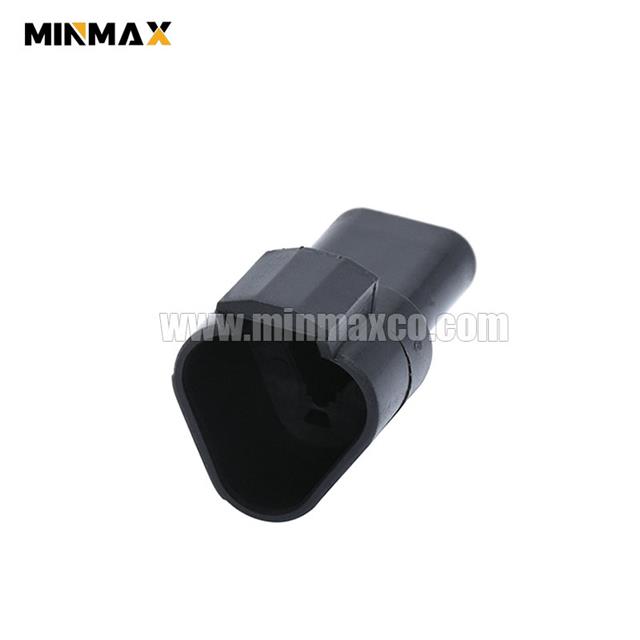

3 Way Male  DT Receptacle DT04-3P-E004 Black

3 Way Male DT Receptacle DT04-3P-E004 Black

OEM Part NumberDT04-3P-E004
OEM SeriesDT
MinMax Part Number1150000091
MinMax FamilyMCS076
Connection TypeWire to Wire, Wire to Board
Number of Positions003
Number of Rows2
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleMale
SealableYes
Body ColorBlack
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

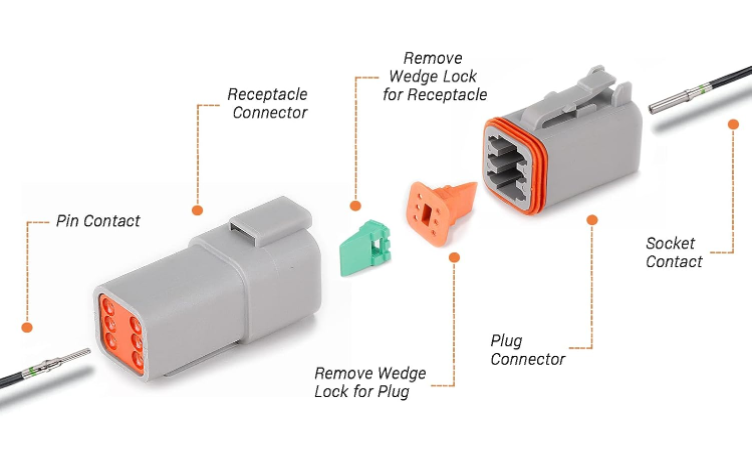

Deutsch Features

✔In line, flange, or PCB mount

✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity

✔High Current Capacity: 13A per contact with 16-gauge wires

✔Easy Installation:reduced assembly time

✔Environmental Seal:will handle extreme applications



deutsch 3 pin plug
