HomeProductsTerminalMale58 Connector X Type 7114-2873 ST740576-1 Sealed Tin Terminal

Male

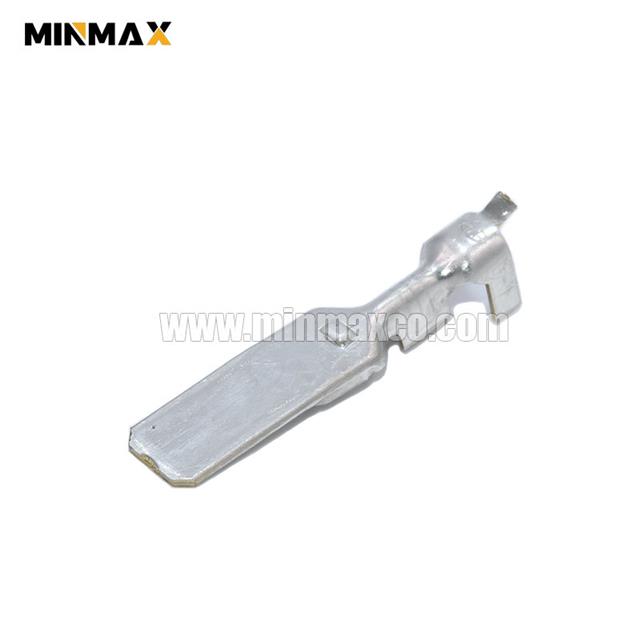

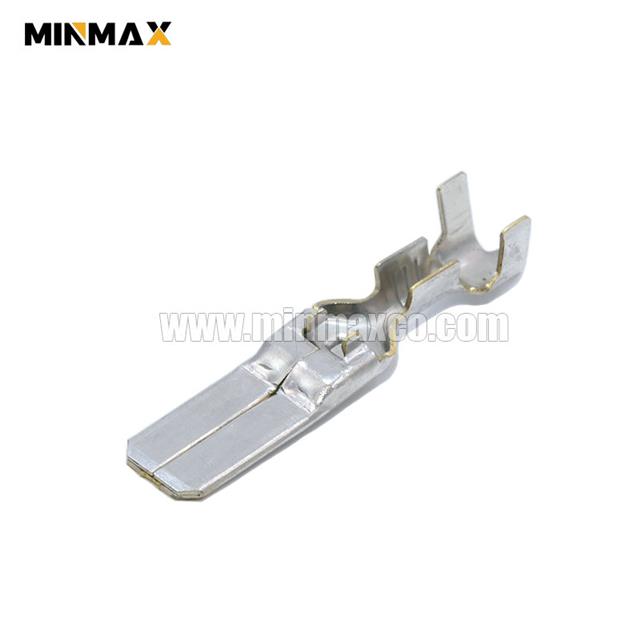

58 Connector X Type 7114-2873 ST740576-1 Sealed Tin Terminal

58 Connector X Type 7114-2873 ST740576-1 Sealed Tin Terminal

OEM Part Number7114-2873 / ST740576-1
OEM Series58 Connector X Type
MinMax Part Number1210000076
MinMax FamilyMTS014
Tab Size (mm)6.3mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.85-1.25mm2
Wire Size (AWG)18-16AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current18(AWG)--6(A), 16(AWG)--6(A)
Nominal Voltage Architecture (V)24,48
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
