Female

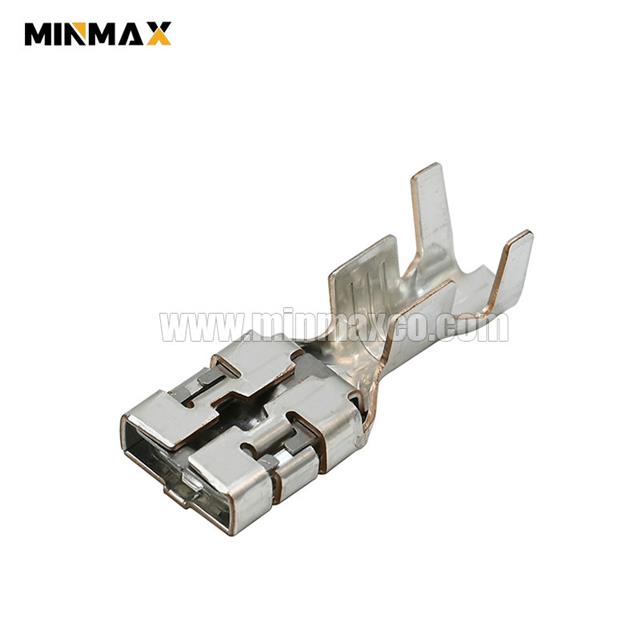

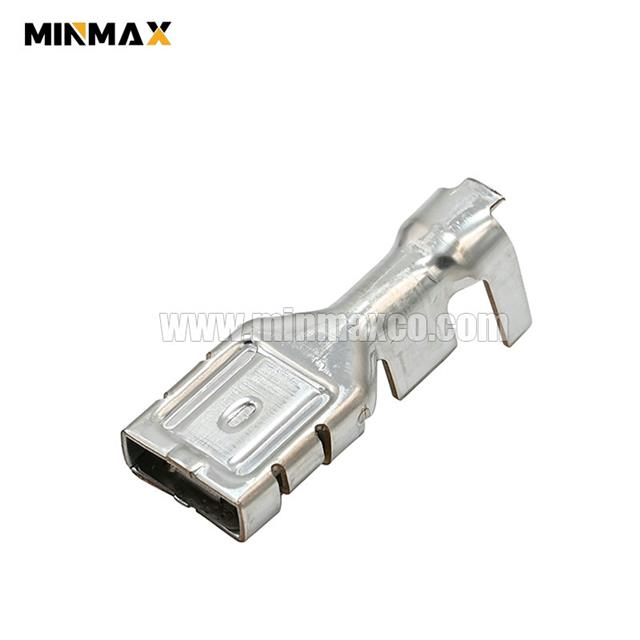

58 Series 7116-3250 Female Sealed Tin Terminal

58 Series 7116-3250 Female Sealed Tin Terminal

OEM Part Number7116-3250
OEM Series
MinMax Part Number1210000754
MinMax Family
Tab Size (mm)9.5mm
Male/FemaleFemale
SealableYes
Wire Size (mm²)5.0-8.0mm2
Wire Size (AWG)10-8AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current10(AWG)--36(A), 8(AWG)--48(A)
Nominal Voltage Architecture (V)24,48
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
