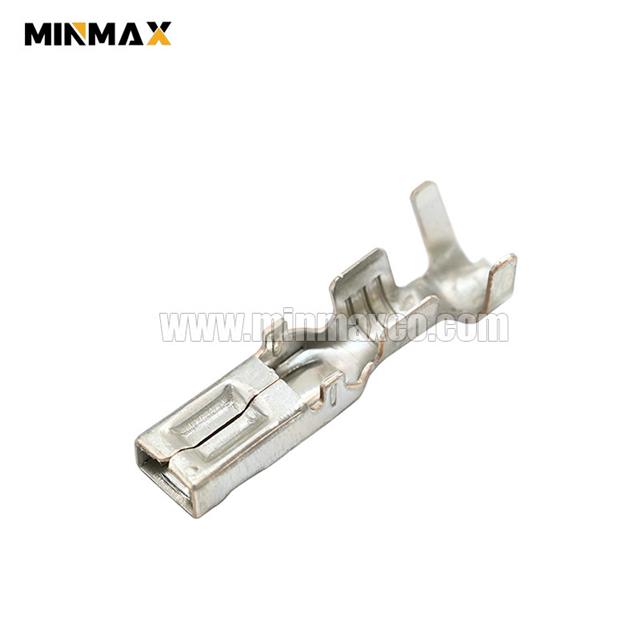

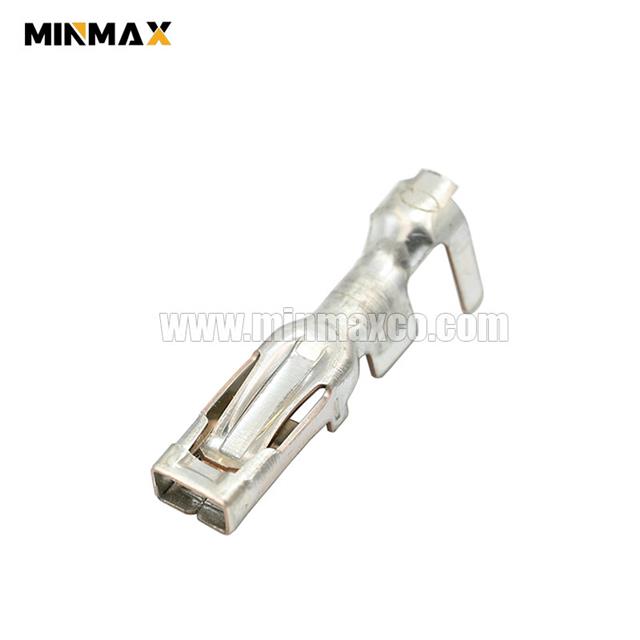

58 W ST730524-3 Sealed Female Tin Terminal

58 W ST730524-3 Sealed Female Tin Terminal

OEM Part NumberST730524-3
OEM Series
MinMax Part Number1210000063
MinMax Family
Tab Size (mm)2.8mm
Male/FemaleFemale
SealableYes
Wire Size (mm²)0.3-0.85mm2
Wire Size (AWG)22-18AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A), 18(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
