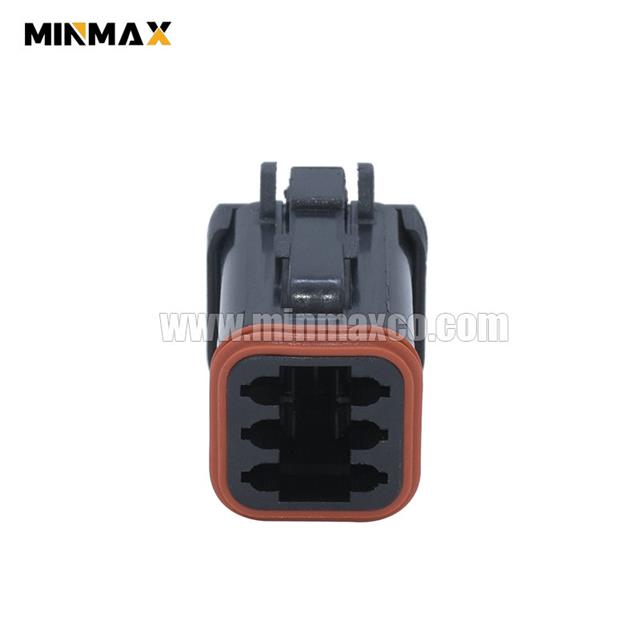

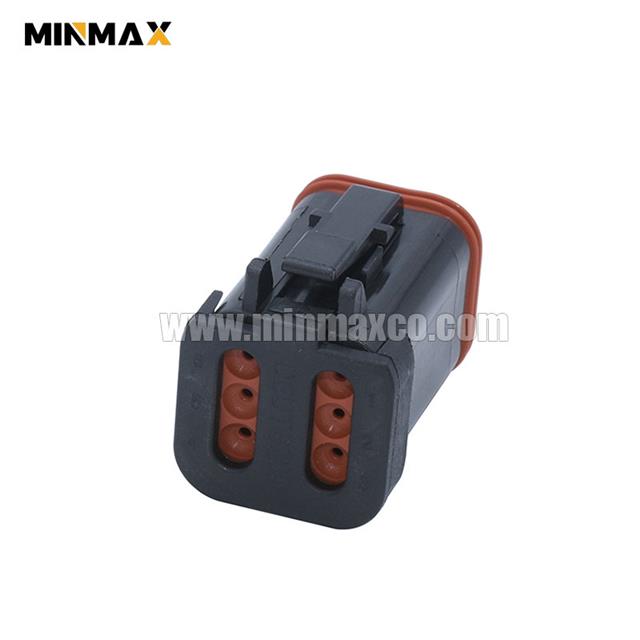

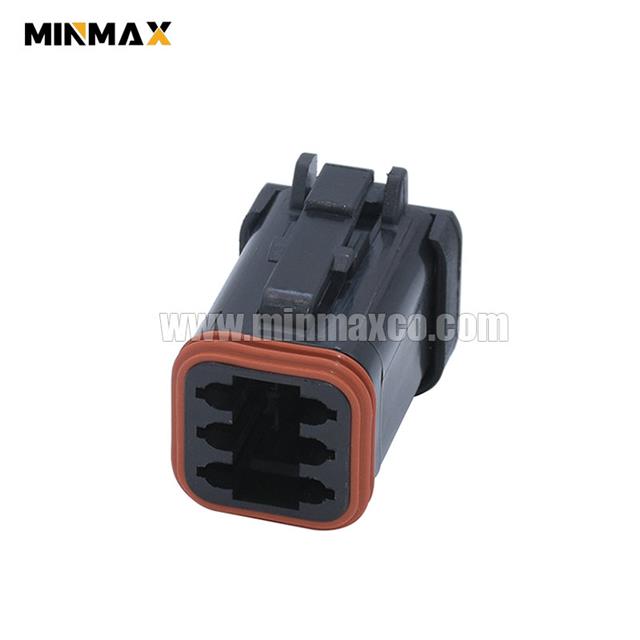

6 Pin Female DT Agricultural Machinery Electrical Connector DT06-6S-E005

6 Pin Female DT Agricultural Machinery Electrical Connector DT06-6S-E005

OEM Part NumberDT06-6S-E005
OEM SeriesDT
MinMax Part Number1150000258
MinMax FamilyMCS076
Connection TypeWire to Wire, Wire to Board
Number of Positions006
Number of Rows2
HybridNo
Contact Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Body ColorBlack
Housing MaterialPA66
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949

DT series provide reliable waterproof connections for cable-to-cable applications

across various environments, including engines, transmissions, chassis, under the hood, and within the cab.



Deutsch Features

✔In line, flange, or PCB mount

✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity

✔High Current Capacity: 13A per contact with 16-gauge wires

✔Easy Installation:reduced assembly time

✔Environmental Seal:will handle extreme applications

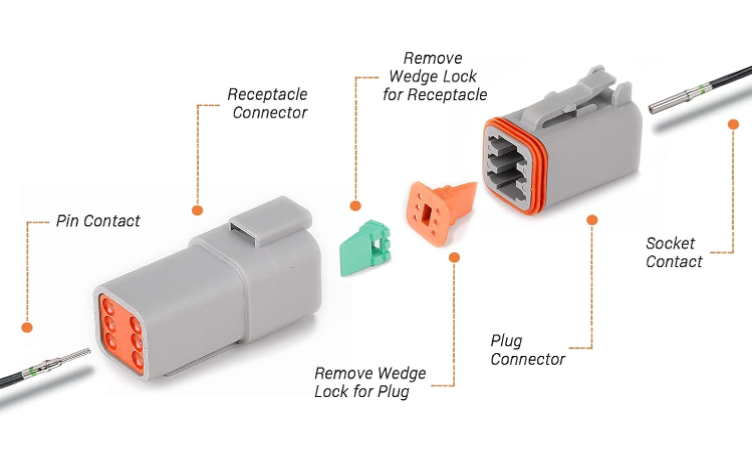

deutsch 6 pin plug
