| OEM Part Number | DT04-6P |
|---|---|
| OEM Series | DT |
| MinMax Part Number | 1150000232 |
| MinMax Family | MCS076 |
| Connection Type | Wire to Wire, Wire to Board |
| Number of Positions | 006 |
| Number of Rows | 2 |
| Hybrid | No |
| Contact Tab Size (mm) | 1.5mm |
| Male/Female | Male |
| Sealable | Yes |
| Body Color | Gray |
| Housing Material | PA66 |
| Nominal Voltage Architecture (V) | 12，14 |
| Operating Temperature Range | -40℃~120℃ |
| Certification | ISO9001, RoHS, REACH, TS16949 |
Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications

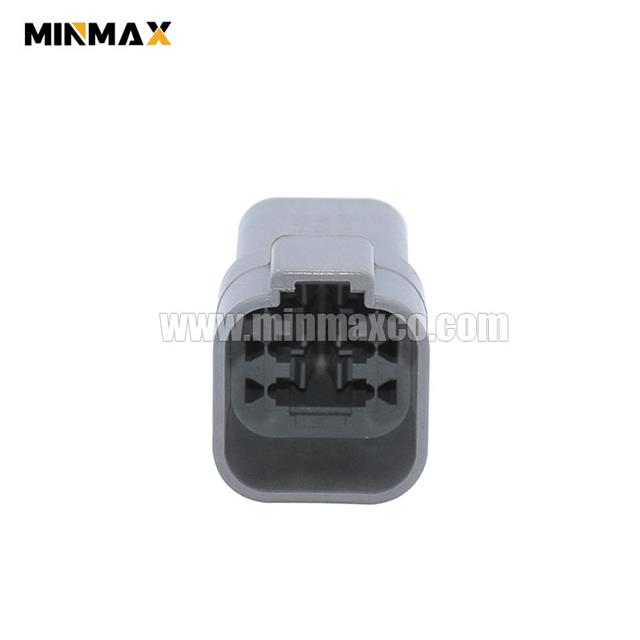

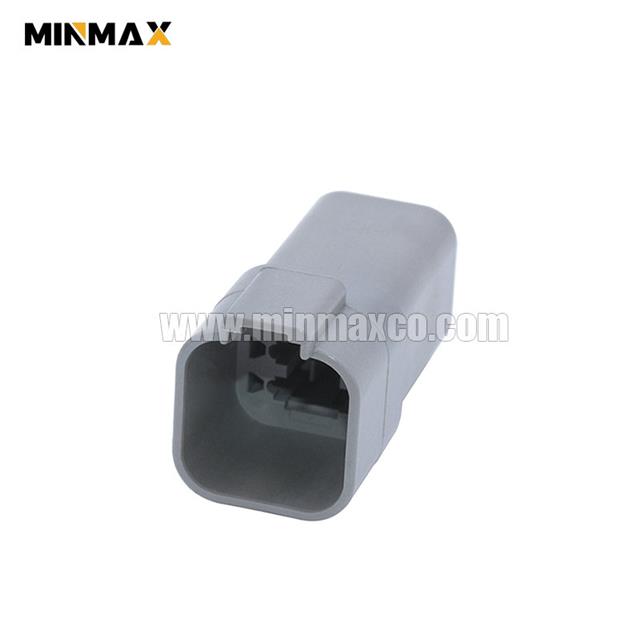

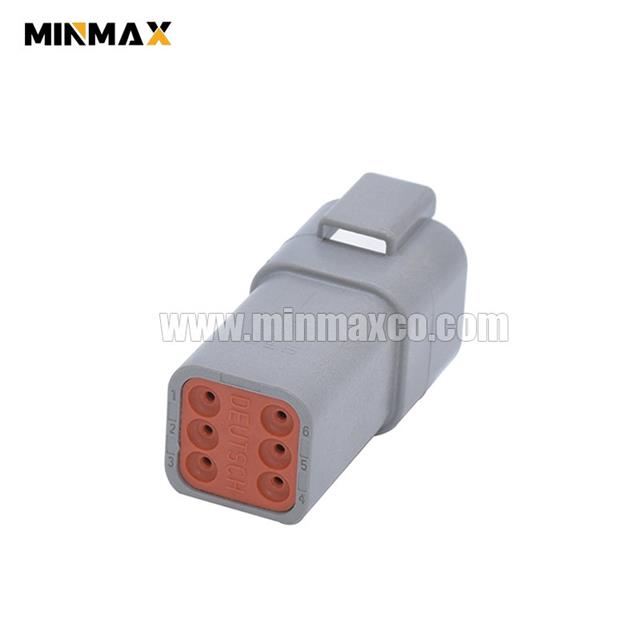

deutsch 6 pin plug
OEM Part Number:1011-241-0605
