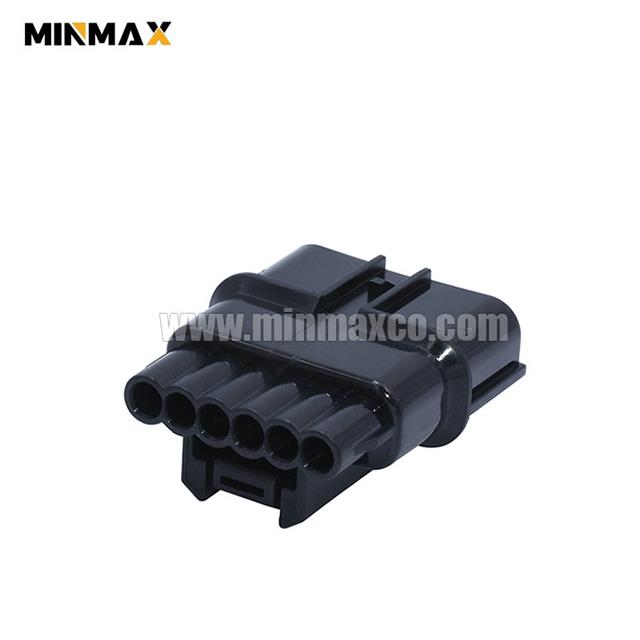

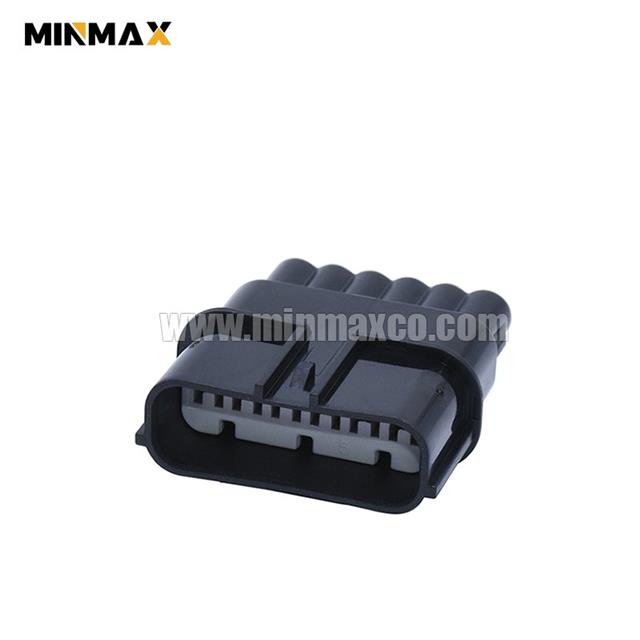

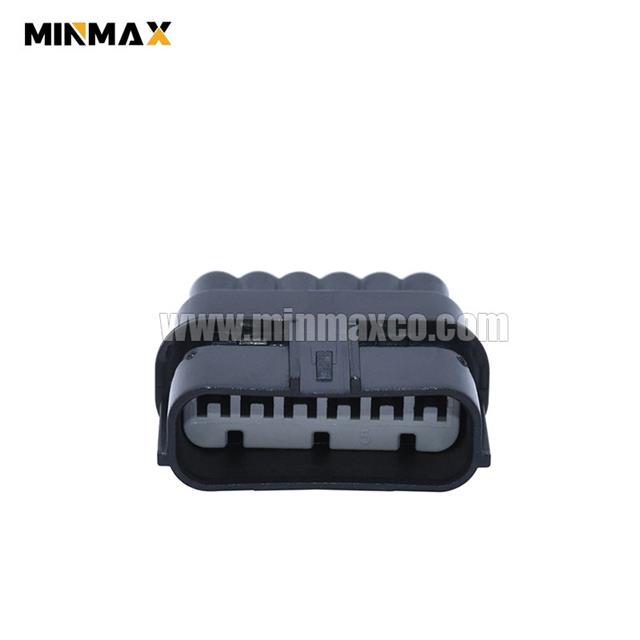

6 Way Male HX Connector For Honda Ignition Coil Wire Harness 6188-0658

6 Way Male HX Connector For Honda Ignition Coil Wire Harness 6188-0658

OEM Part Number6188-0658
OEM SeriesHX sealed series
MinMax Part Number1111000352
MinMax FamilyMCS003
Connection TypeWire to Wire
Number of Positions006
Number of Rows1
HybridNo
Contact Tab Size (mm)1.2mm
Male/FemaleMale
SealableYes
Body ColorBlack
Housing MaterialPBT
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
