Overview

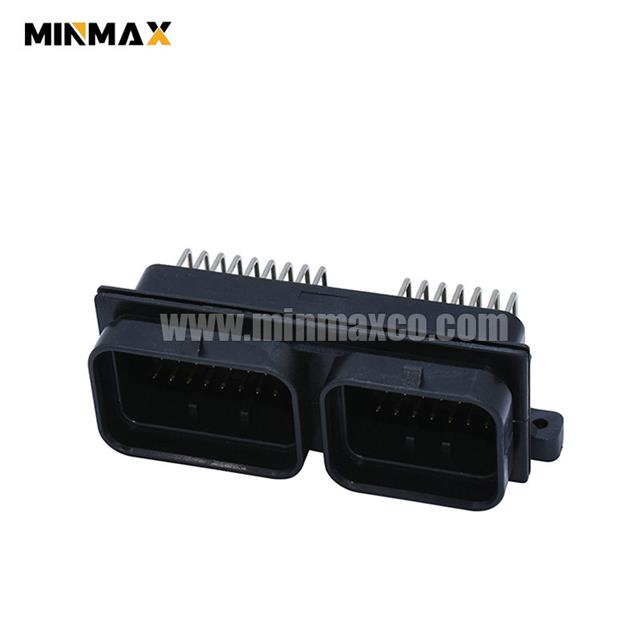

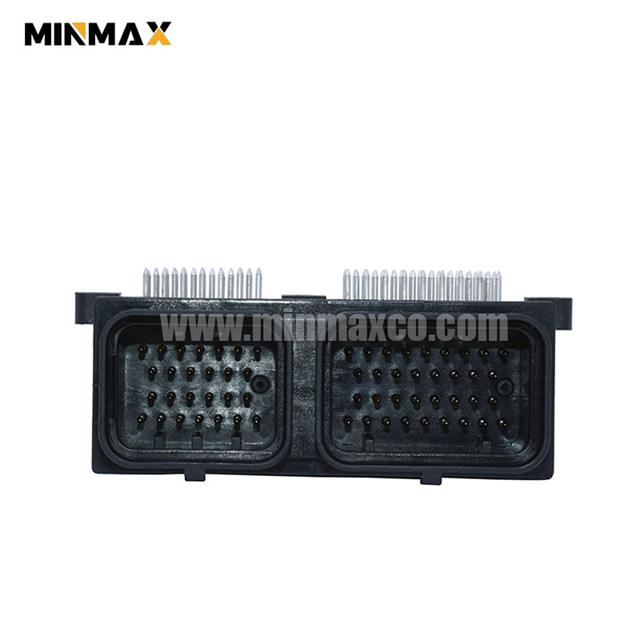

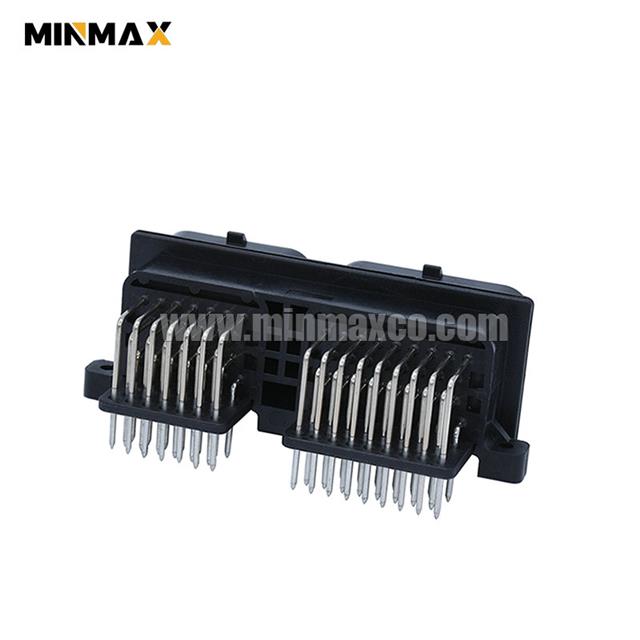

Our SUPERSEAL 1.0 connectors are engineered to fulfill the growing demand for reliable printed circuit board applications in tough and challenging environments. The SUPERSEAL 1.0 headers can be obtained with either straight or right-angle pins. A range of locking latch alternatives and keying arrangements are likewise accessible.
Features
SUPERSEAL 1.0 connector headers are designed for high-density printed circuit board applications. Superseal 1.0 headers are integrated with 1.0 mm contacts, rated up to 15 amps each.
PCB Connector Assembly Type : PCB Mount Receptacle, PCB Mount Header
PCB Mount Orientation : Vertical, Right Angle
Connector System : Wire-to-Device, Wire-to-Board, Cable-to-Board
Number of Positions : 26, 60, 34
Number of Rows : 4, 2
Application
