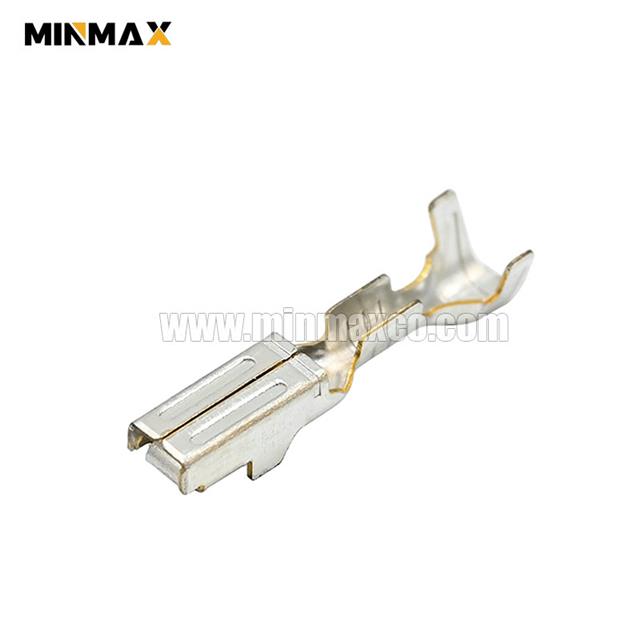

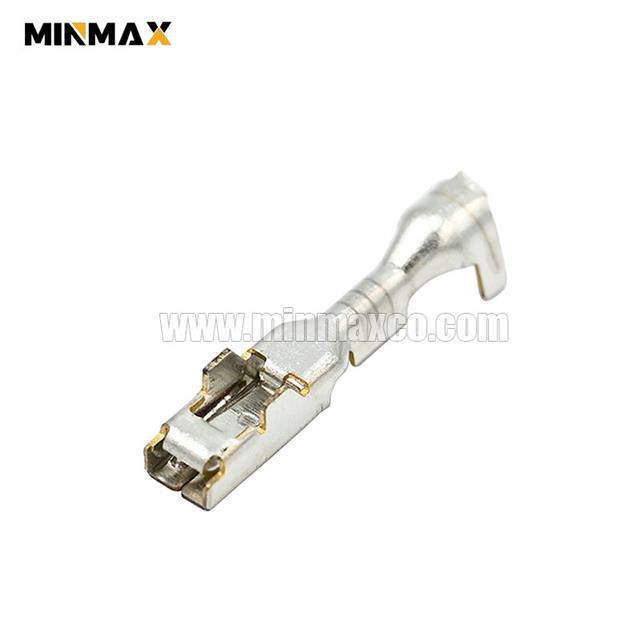

617218 Female Sealed Tin Terminal

617218 Female Sealed Tin Terminal

OEM Part Number617218
OEM Series
MinMax Part Number1210000057
MinMax FamilyMTS006
Tab Size (mm)2.3mm
Male/FemaleFemale
SealableYes
Wire Size (mm²)0.3-0.5mm2
Wire Size (AWG)22-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
