HomeProductsTerminalMale7114-1304 1400-0434 Z Type Male Waterproof Tin Terminal

Male

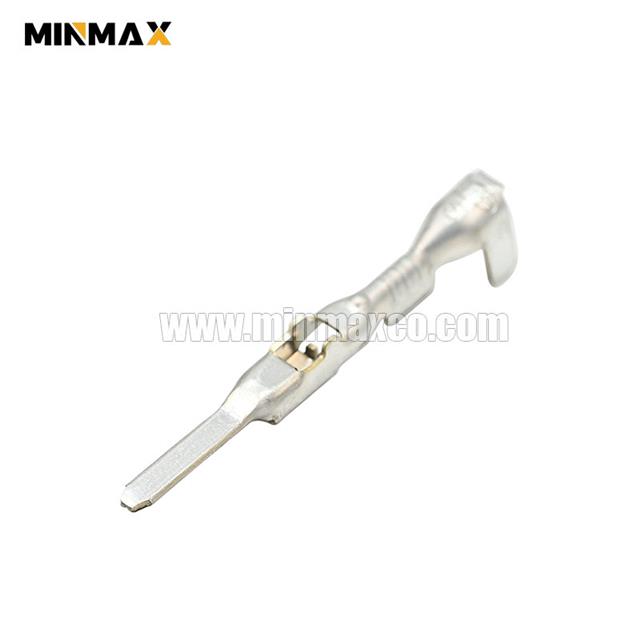

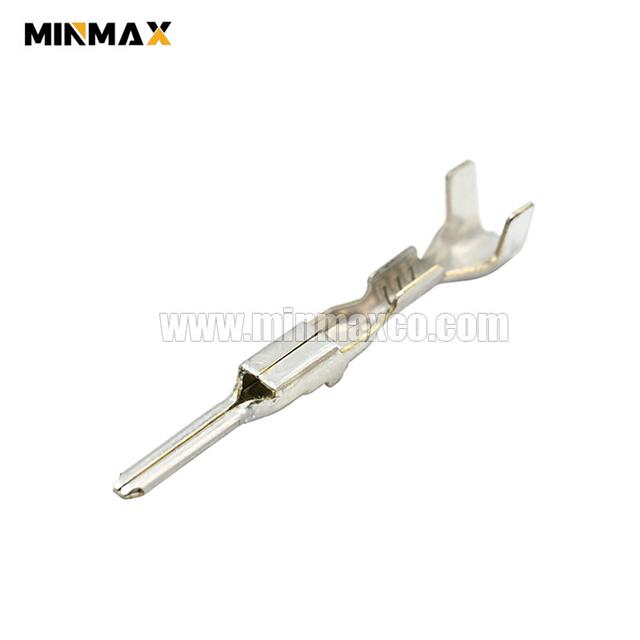

7114-1304 1400-0434 Z Type Male Waterproof Tin Terminal

7114-1304 1400-0434 Z Type Male Waterproof Tin Terminal

OEM Part Number1400-0434 / 7114-1304 / MT091-33030
OEM Series62 Connector Z Type
MinMax Part Number1210000249
MinMax FamilyMTS011
Tab Size (mm)1.5mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.3-0.5mm2
Wire Size (AWG)22-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
