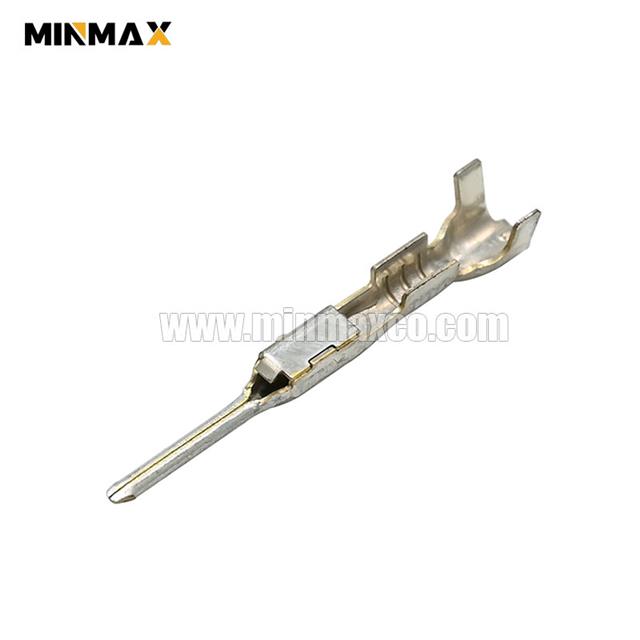

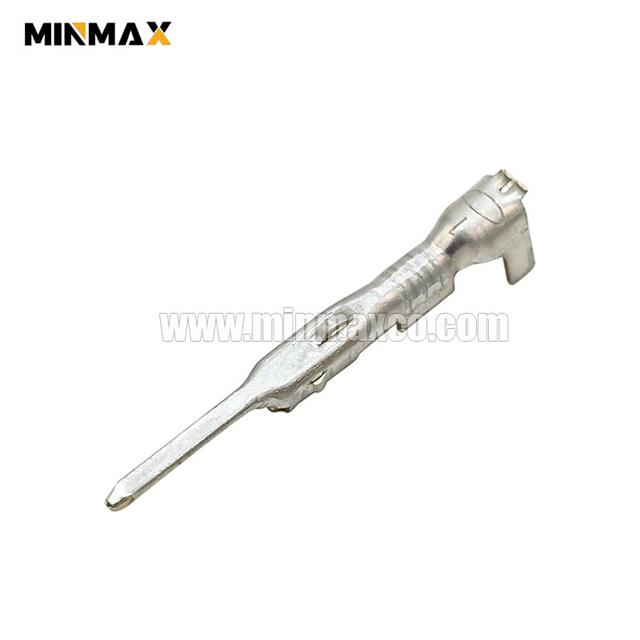

7114-1466-02 ST740926-3 RK Type Male Sealed Tin Terminal

7114-1466-02 ST740926-3 RK Type Male Sealed Tin Terminal

OEM Part Number7114-1466-02 / ST740926-3 / 10810478
OEM Series91 Connector RK Type
MinMax Part Number1210000132
MinMax FamilyMTS010
Tab Size (mm)1.2mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.3-0.5mm2
Wire Size (AWG)22-20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current22(AWG)--2.5(A), 20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
