HomeProductsConnectorHousing8 Way DTM Transport Vehicles Waterproof Connector DTM04-08P

Housing

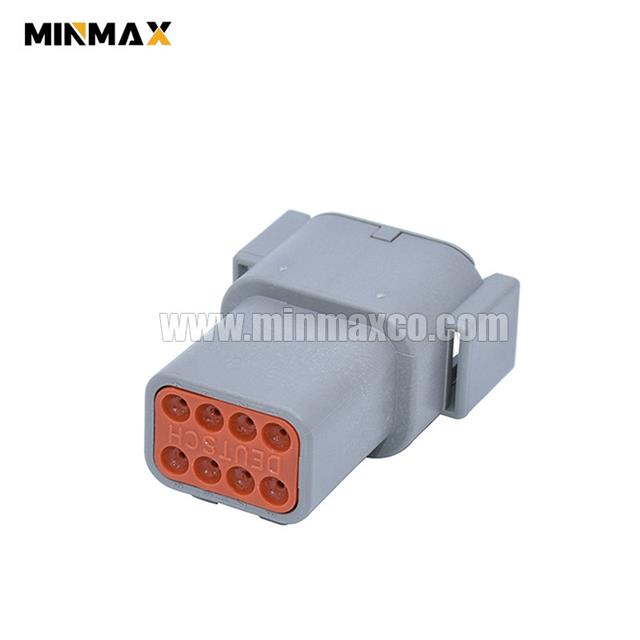

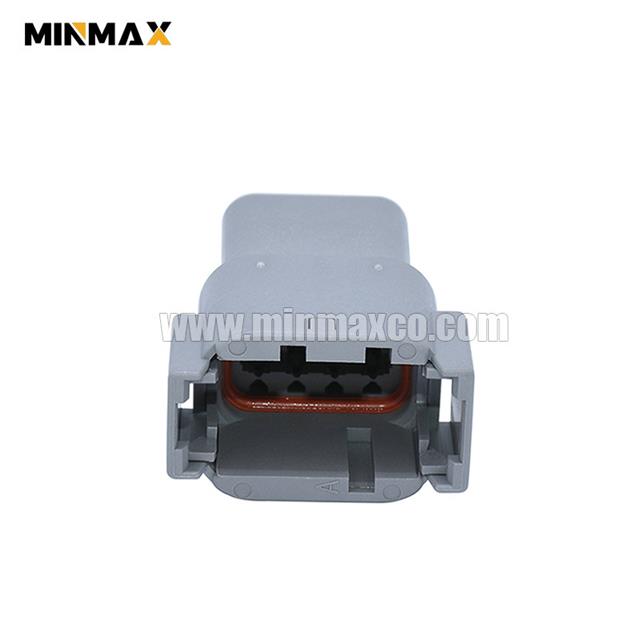

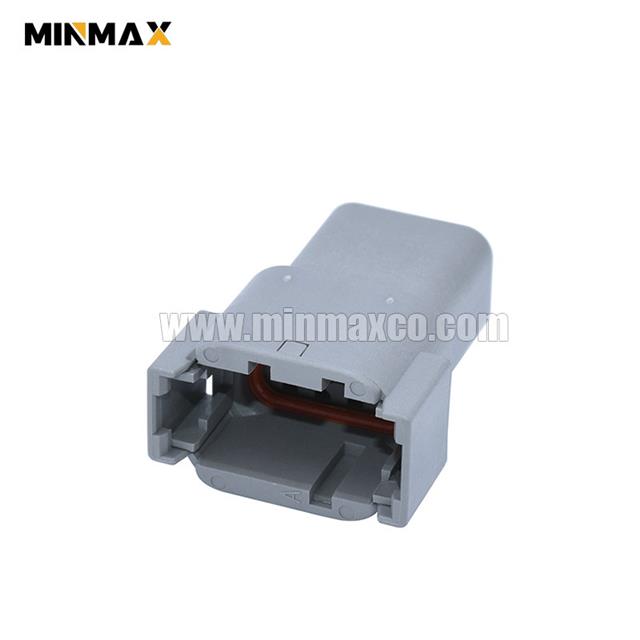

8 Way DTM Transport Vehicles Waterproof Connector DTM04-08P

8 Way DTM Transport Vehicles Waterproof Connector DTM04-08P

OEM Part NumberDTM04-08PA
OEM SeriesDTM
MinMax Part Number1150000322
MinMax FamilyMCS049
Connection TypeWire to Wire, Wire to Board
Number of Positions008
Number of Rows2
HybridNo
Contact Tab Size (mm)1.2mm
Male/FemaleMale
SealableYes
Body ColorGray
Housing MaterialPA66-GF15-V0
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
