OVERVIEW

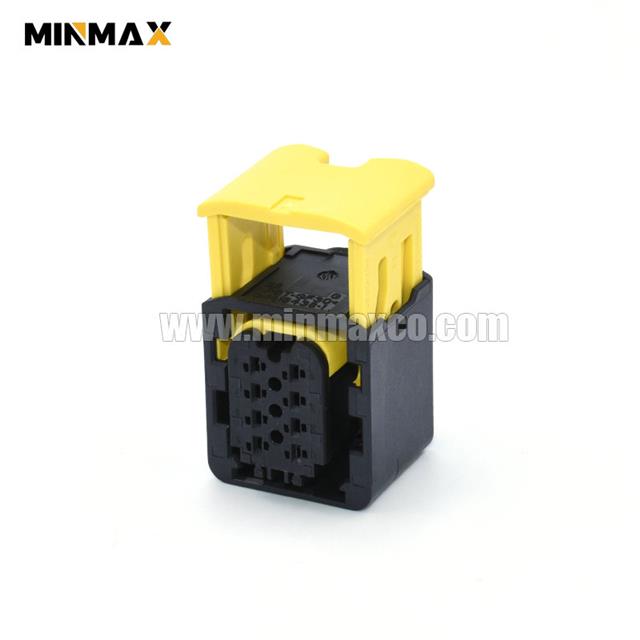

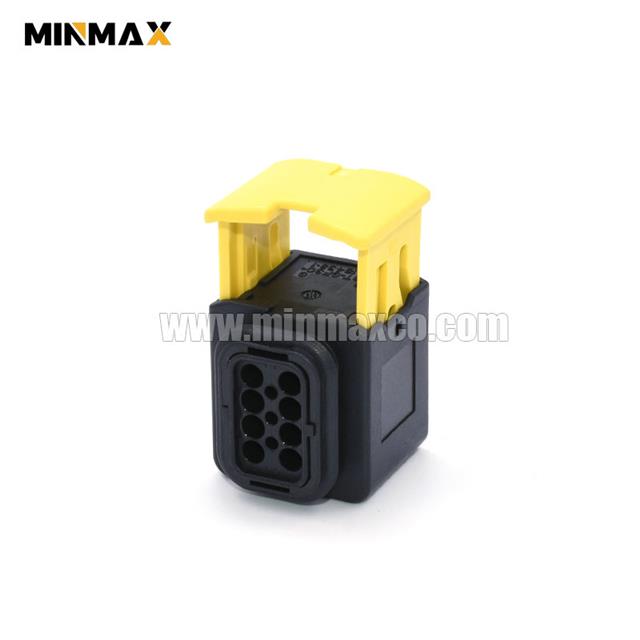

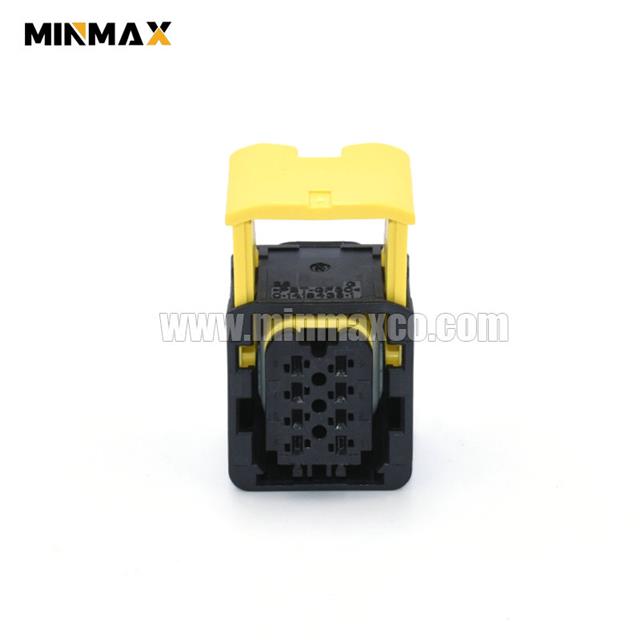

HDSCS (Heavy Duty Sealed Connector Series) offers robust, reliable solutions for high-current applications. With IP69K sealing, it protects against dust and water, supporting contact sizes up to 40 amps. Featuring durable thermoplastic housing and versatile cavity options, HDSCS ensures secure connections for heavy-duty industries.
*Accepts contact sizes 6.3/4.8K (up to 40 amps), 2.8 (up to 40 amps), and 1.5K (up to 20 amps) and MCON 1.2
*2, 3, 4, 6, 7, 8, 10, 12, 13, 15, 16, and 18 cavity arrangements

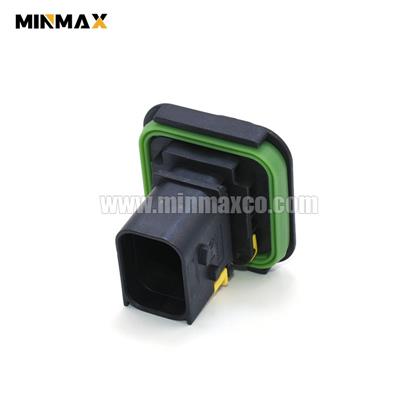

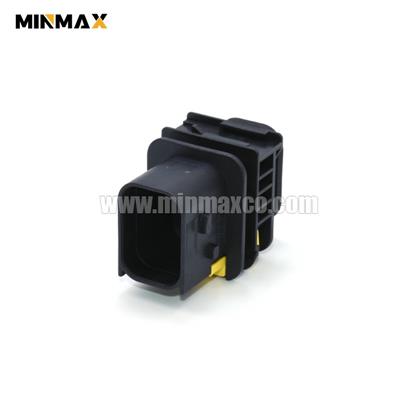

*In-line, flange or PCB mount
*Rectangular, thermoplastic housing
*Slide lock for mating
*An integrated secondary lock confirms contact alignment and retention
*Meet CAN Bus protocol specifications according to SAE J1939 standard
*Available accessories: Backshells, fixing slides, protection caps, blind plugs and sealing plugs
Commercial Vehicle
New Energy Vehcle Industrial Machinery
