HomeProductsTerminalFemale927824-1 Standard Power Timer Series Automotive Terminal

Female

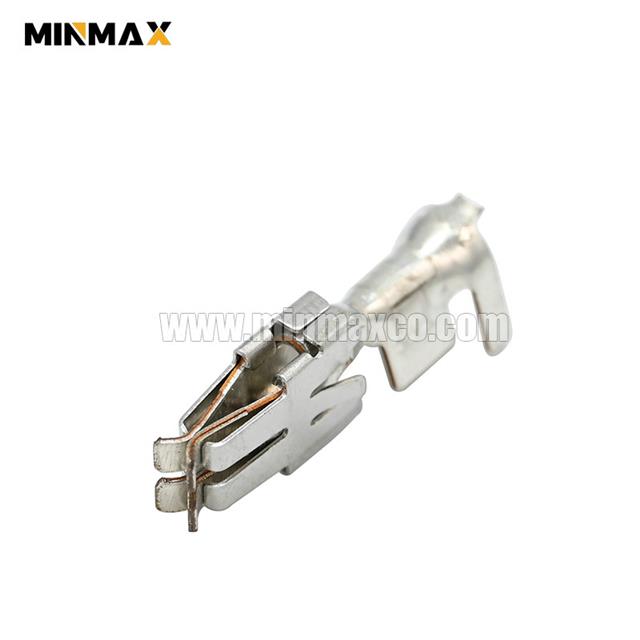

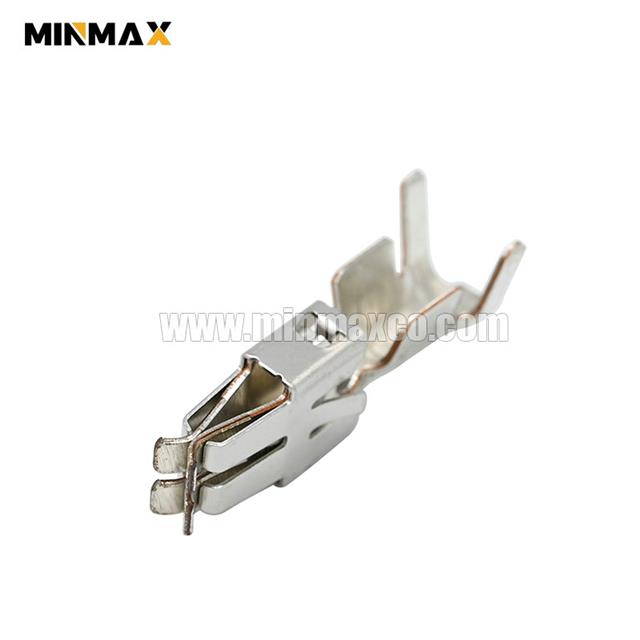

927824-1 Standard Power Timer Series Automotive Terminal

927824-1 Standard Power Timer Series Automotive Terminal

OEM Part Number927824-1
OEM Series
MinMax Part Number1210000571
MinMax Family
Tab Size (mm)6.3mm
Male/FemaleFemale
SealableNo
Wire Size (mm²)2.5-4.0mm2
Wire Size (AWG)12AWG
Crimp Type
Material
Interface PlatingTin
Load Current12(AWG)--26(A)
Nominal Voltage Architecture (V)24,48
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
