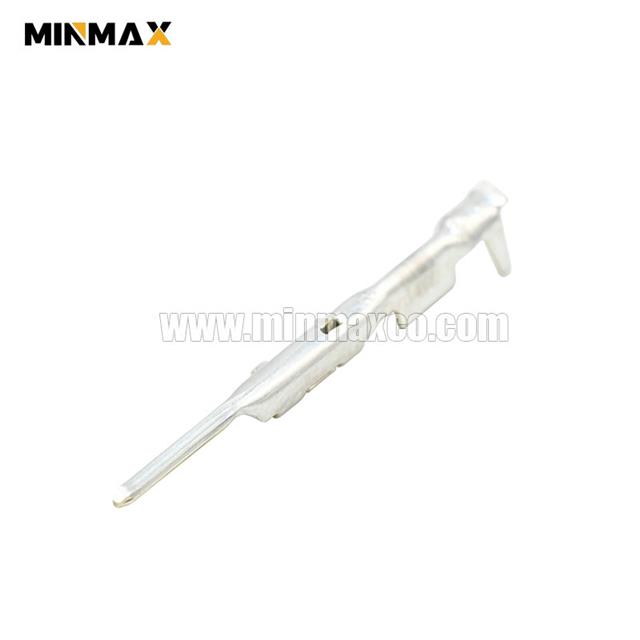

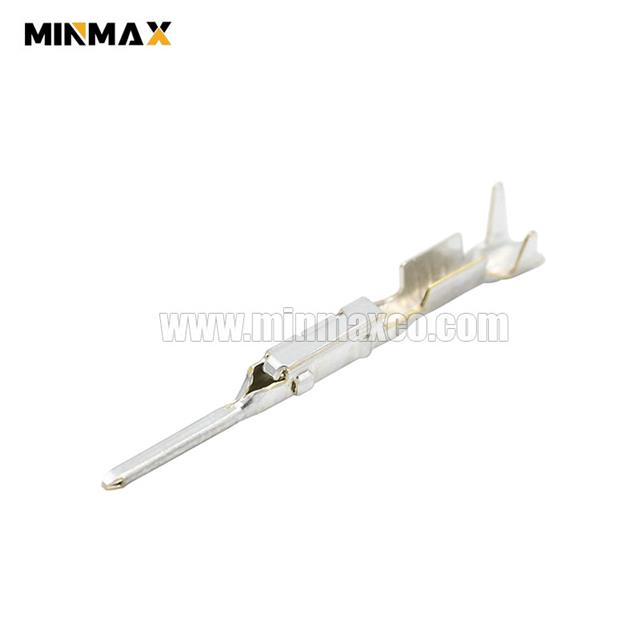

HS RH 7114-4416-02 Male Sealed Tin Terminal

HS RH 7114-4416-02 Male Sealed Tin Terminal

OEM Part Number7114-4416-02
OEM SeriesRH CONNECTOR
MinMax Part Number1210000002
MinMax FamilyMTS009
Tab Size (mm)0.6mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.5mm2
Wire Size (AWG)20AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current20(AWG)--4(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
