HomeProductsTerminalFemaleMetri-Pack 12048074 Female Sealed Tin Terminal

Female

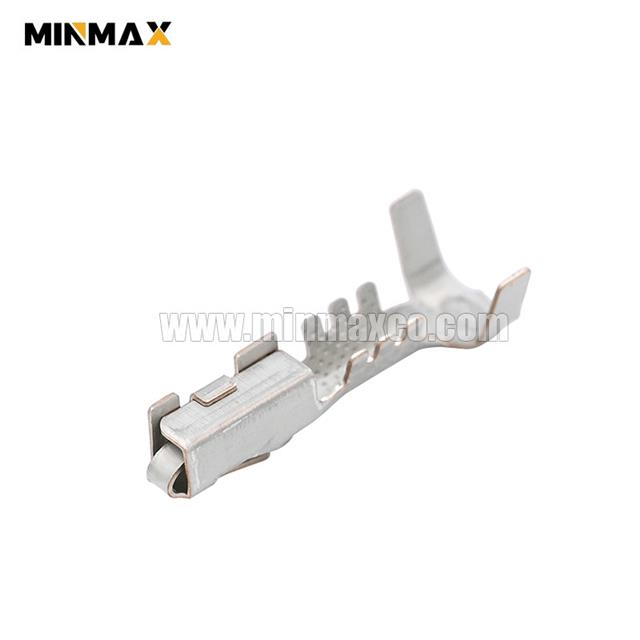

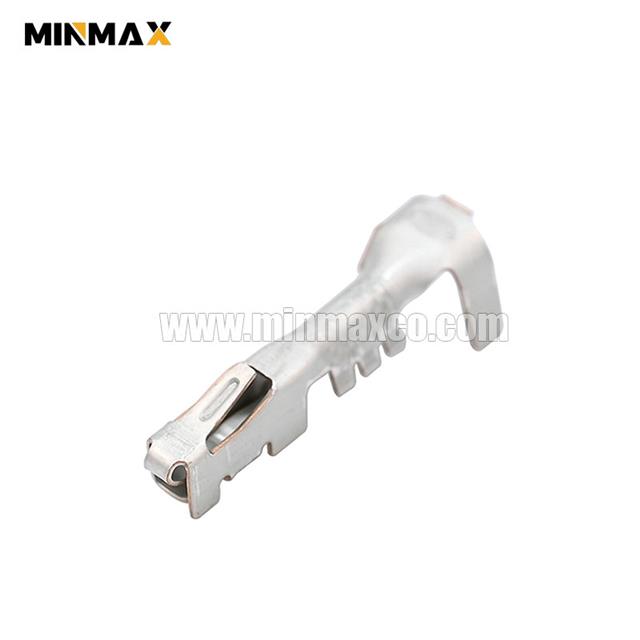

Metri-Pack 12048074 Female Sealed Tin Terminal

Metri-Pack 12048074 Female Sealed Tin Terminal

OEM Part Number12048074
OEM SeriesMetri-Pack Terminal Series
MinMax Part Number1210000280
MinMax FamilyMTS016
Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Wire Size (mm²)0.85-1.25mm2
Wire Size (AWG)18-16AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current18(AWG)--6(A), 16(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
