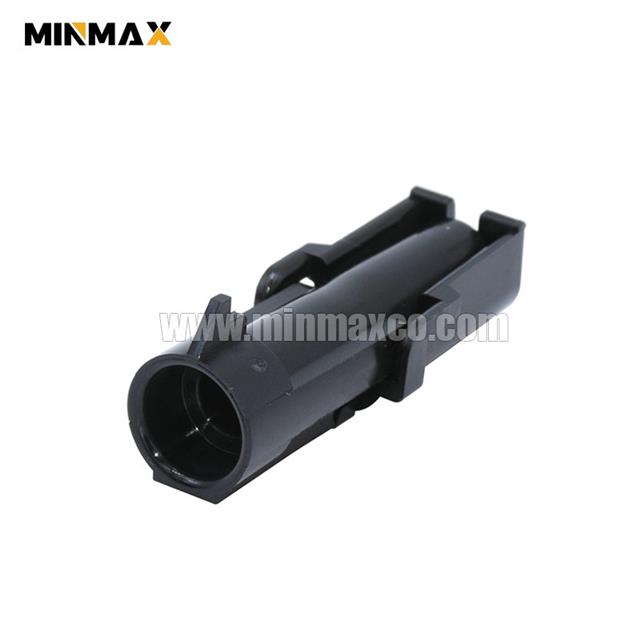

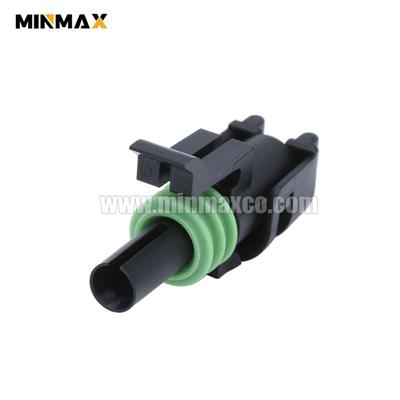

Weather Pack is a sealed electrical connection system, built for harsh environments. It withstands extreme temperatures, moisture, chemicals, and fluids, commonly used in racing, construction, off-road, and industrial applications. Key features: positive locking to prevent mismating, pin-and-sleeve design minimizing stress, and dual-locking tangs for secure terminal retention. Ideal for low-energy, low-voltage vehicle electronics.
FEATURES
*Material:Polyamide PA66
*Sealed:Yes
*Operating temperature:-40℃to +125℃
*Current:Up to 20 amps
*Voltage:0.05-16 VDC
*Number of positions:1,2,3,4,5,6
*Application Industry:Racing, Construction, Off-road, Industrial equipment
Application
1.Off-road Vehicles
2.Racing cars
3.Commercial Vehicles (Trucks and Buses)
4.Industrial Equipment
5.Farm Equipment
6.Other Tough or Marine Applications
Our Workshop Overview
EDM Mirror Processing EDM Parts Slow-feeding wire cut machine
CNC Machine Plastic Injection Machine Automatic production Line
How to instructions
Step1：Put the seal through the stripped wire
Step 2：Crimp the terminal and do the pull-out test to make sure the crimpings are completed
Step 3：Insert the terminal to the connectors
Step 4：Insert the male connector to the female connector
Step5：Click the positive clip to engage the connectors.
