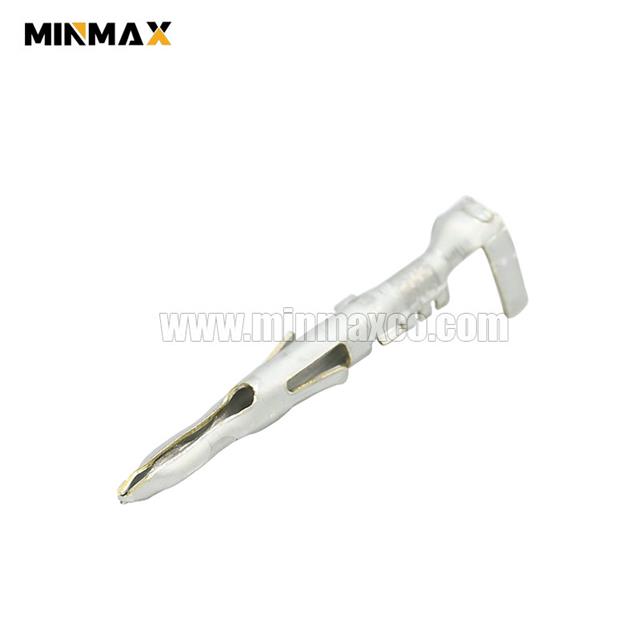

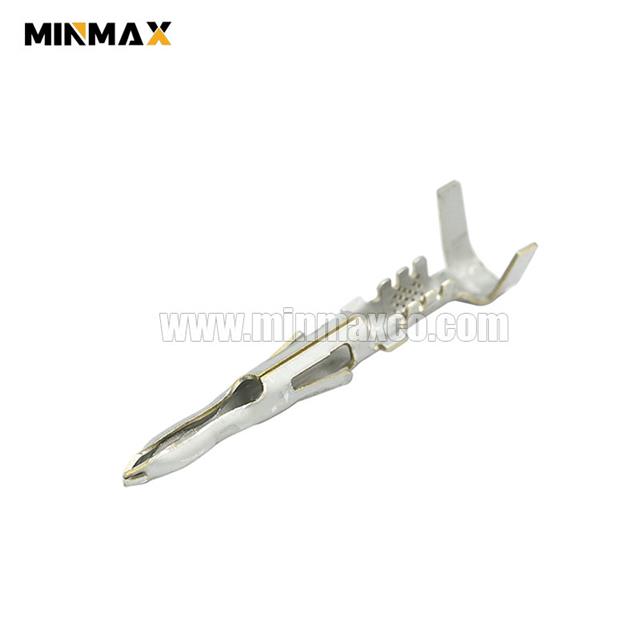

12089040 Weather Pack Male Matte Tin Terminal

12089040 Weather Pack Male Matte Tin Terminal

OEM Part Number12089040
OEM SeriesWeather-Pack Sealed
MinMax Part Number1210000142
MinMax FamilyMTS017
Tab Size (mm)2.5mm
Male/FemaleMale
SealableYes
Wire Size (mm²)0.5-0.85mm2
Wire Size (AWG)20-18AWG
Crimp Type
MaterialBrass
Interface PlatingTin
Load Current20(AWG)--4(A), 18(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
