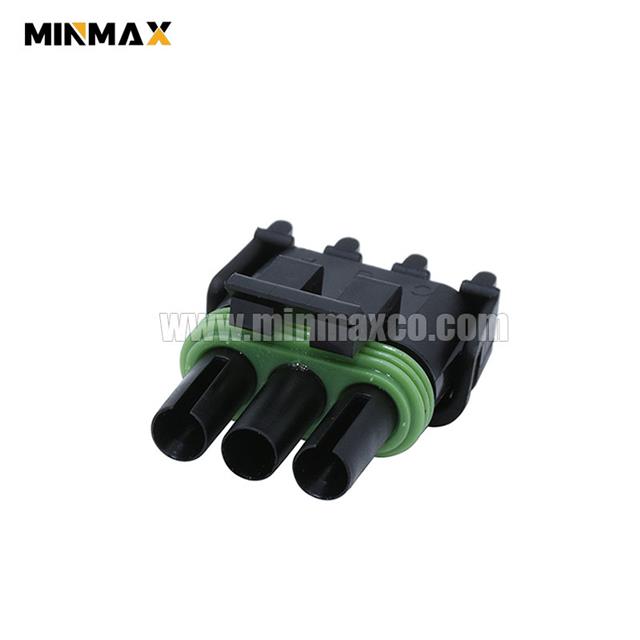

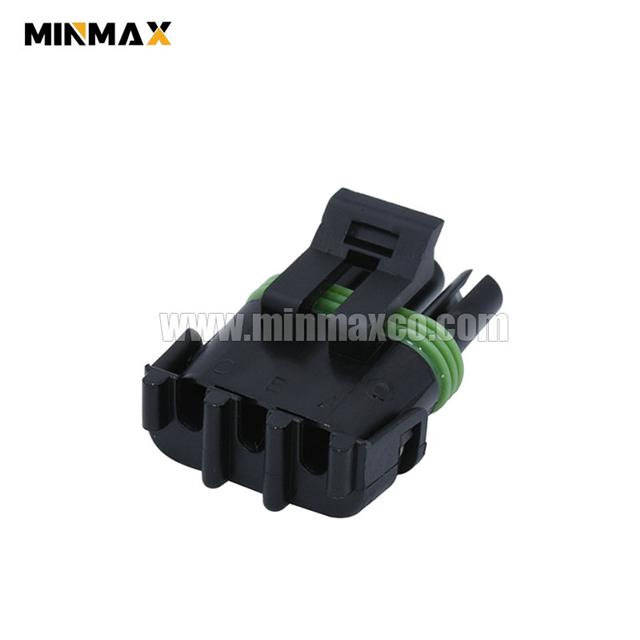

OEM Part Number | 12015793 |
---|---|
OEM Series | Weather-Pack Sealed |
MinMax Part Number | 1121000014 |
MinMax Family | MCS063 |
Connection Type | Wire to Wire |
Number of Positions | 003 |
Number of Rows | 1 |
Hybrid | No |
Contact Tab Size (mm) | 2.5mm |
Male/Female | Female |
Sealable | Yes |
Body Color | Black |
Housing Material | PA6 |
Nominal Voltage Architecture (V) | 12,14 |
Operating Temperature Range | -40℃~120℃ |
Certification | ISO9001, RoHS, REACH, TS16949 |
