HomeProductsTerminalFemaleMCP 1241380-1 Female Sealed Tin Terminal Wire Size 20-18AWG

Female

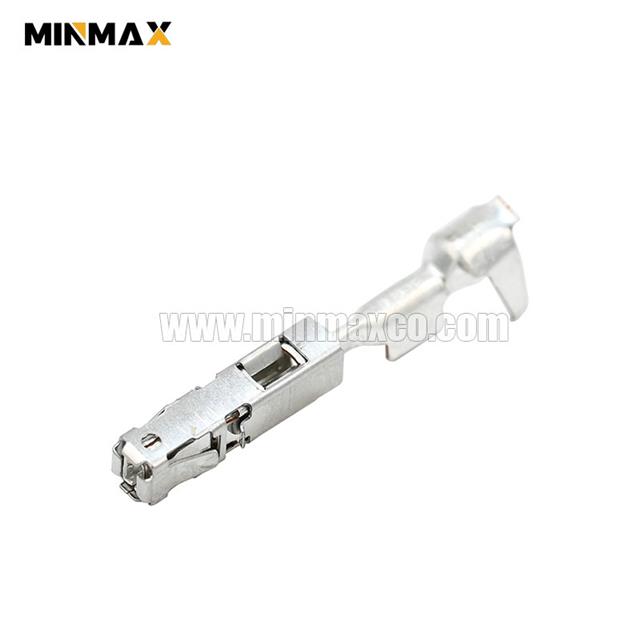

MCP 1241380-1 Female Sealed Tin Terminal Wire Size 20-18AWG

MCP 1241380-1 Female Sealed Tin Terminal Wire Size 20-18AWG

OEM Part Number1241380-1
OEM SeriesAMP MCP Connector
MinMax Part Number1220000047
MinMax FamilyMTS005
Tab Size (mm)1.5mm
Male/FemaleFemale
SealableYes
Wire Size (mm²)0.5-1.0mm2
Wire Size (AWG)20-18AWG
Crimp Type
Material
Interface PlatingTin
Load Current20(AWG)--4(A), 18(AWG)--6(A)
Nominal Voltage Architecture (V)12,14
Operating Temperature Range-40℃~120℃
CertificationISO9001, RoHS, REACH, TS16949
